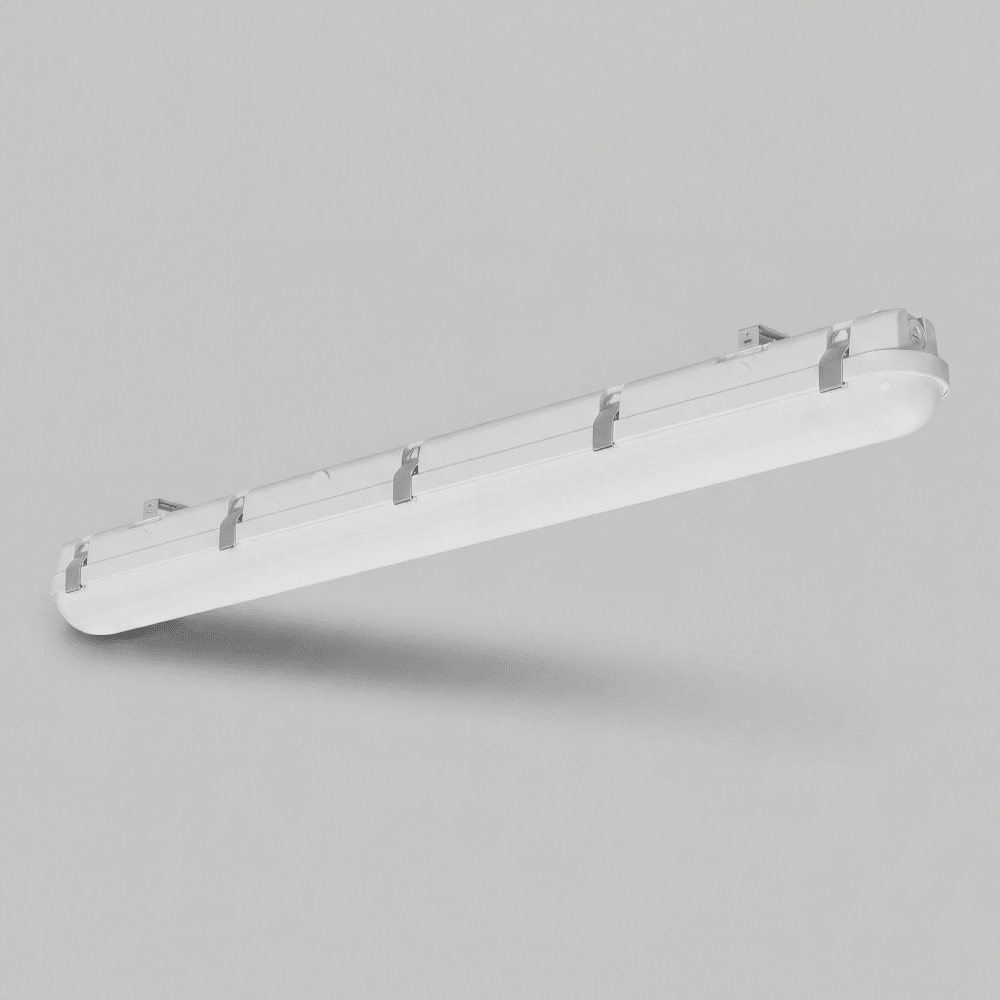

LED Vapor Light -5TH Gen
Series:
INDUSTRIAL LIGHTING SERIES
Features
- Slotted iron Board, excellent heat dissipation.
- Universal voltage: 100-277V or 100-347V.
- P65, lK08, and 850 degrees glow wire test requirement.
- Modular installation, save labor cost.
- Suitable for supermarket, warehouse, underground parking place, garage, production workshops.
- 5-year warranty.
Technical Specifications
Model Specification
Model
TS-TPL1-4FT
LxWxH(mm/in)
1200*95*83/47.92*3.74*3.26
Specifications
| Part No. | Input Voltage | Power | Lumens | Luminous Efficacy | CCT | Beam Angle |
|---|---|---|---|---|---|---|
|
TPL1-4FT32W-X-XXK TS-TPL1-4FT40W-X-XXK TS-TPL1-4FT32W-347-XXK TS-TPL1-4FT40W-347-XXK TS-TPL1-4FT50W-X-TCP TS-TPL1-4FT50W-347-TCP |
AC100-277V AC100-347V AC100-277V AC100-347V |
32W 40W 32W 40W 30/40/50W 30/40/50W |
4,400lm 5,600lm 4,400lm 5,600lm 7,000lm 7,000lm |
140lm/W |
3500K 4000K 5000K 35/40/50K |
120° |
Specifications Sheet
- Slotted iron Board, excellent heat dissipation.
- Universal voltage: 100-277V or 100-347V.
- P65, lK08, and 850 degrees glow wire test requirement.
- Modular installation, save labor cost.
- Suitable for supermarket, warehouse, underground parking place, garage, production workshops.
- 5-year warranty.
Dimensions
Specifications
Accessories
Technical Specifications
Part Number
Part Number
TPL1-4FT32W-X-XXK, TS-TPL1-4FT40W-X-XXK, TS-TPL1-4FT32W-347-XXK, TS-TPL1-4FT40W-347-XXK, TS-TPL1-4FT50W-X-TCP, TS-TPL1-4FT50W-347-TCP
Model
Model Number
TS-TPL1-4FT
LxWxH(mm/in)
1200*95*83/47.92*3.74*3.26
Electrical Specs
Input Voltage
AC100-277V, AC100-347V, AC100-277V, AC100-347V
Power
32W, 40W, 32W, 40W, 30/40/50W, 30/40/50W
Lighting Performance
Lumens
4,400lm, 5,600lm, 4,400lm, 5,600lm, 7,000lm, 7,000lm
Correlated Color Temperature
3500K, 4000K, 5000K, 35/40/50K
Luminous Efficacy
140lm/W
Angles
