Series:
High Bay B Series

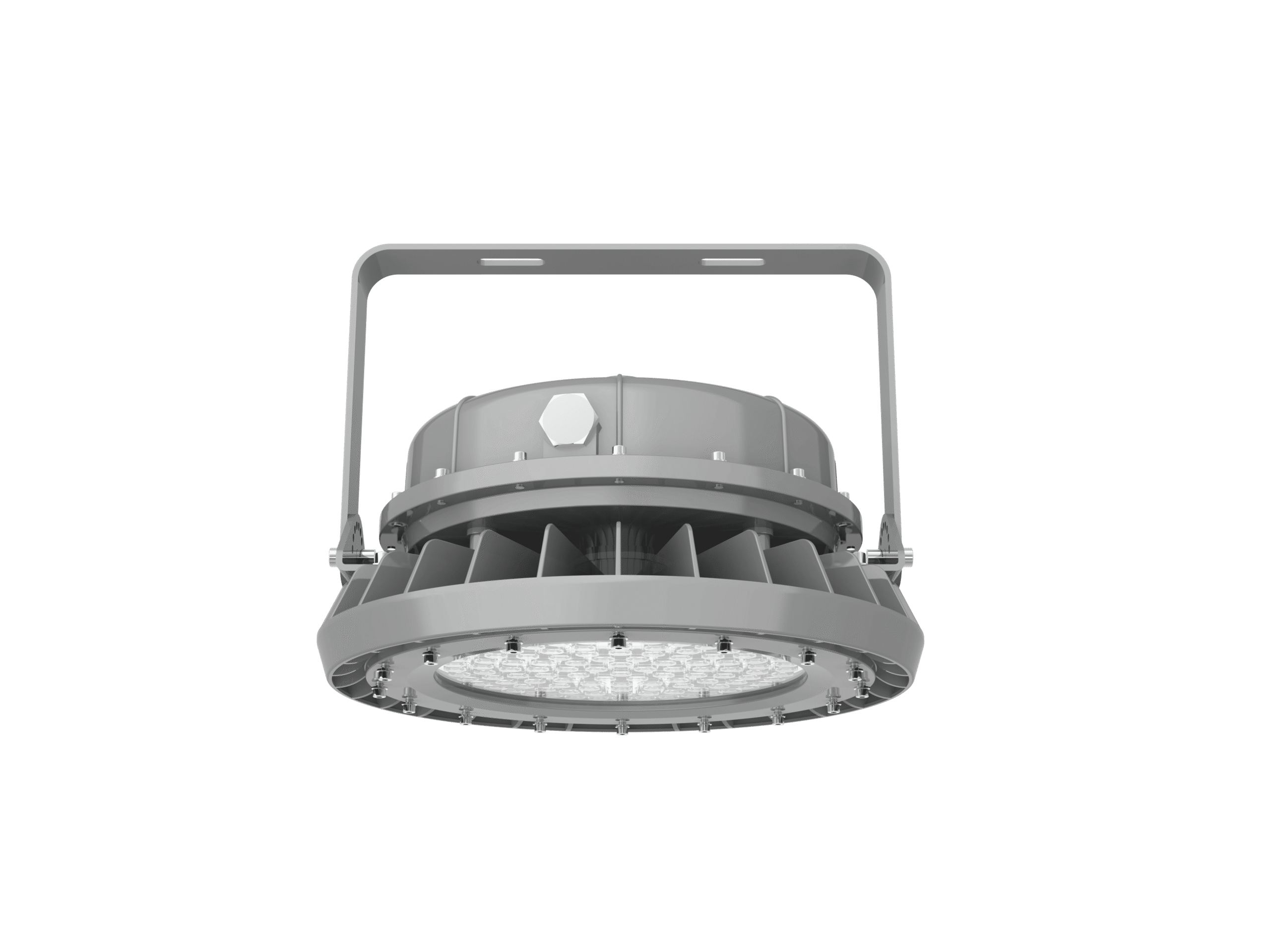

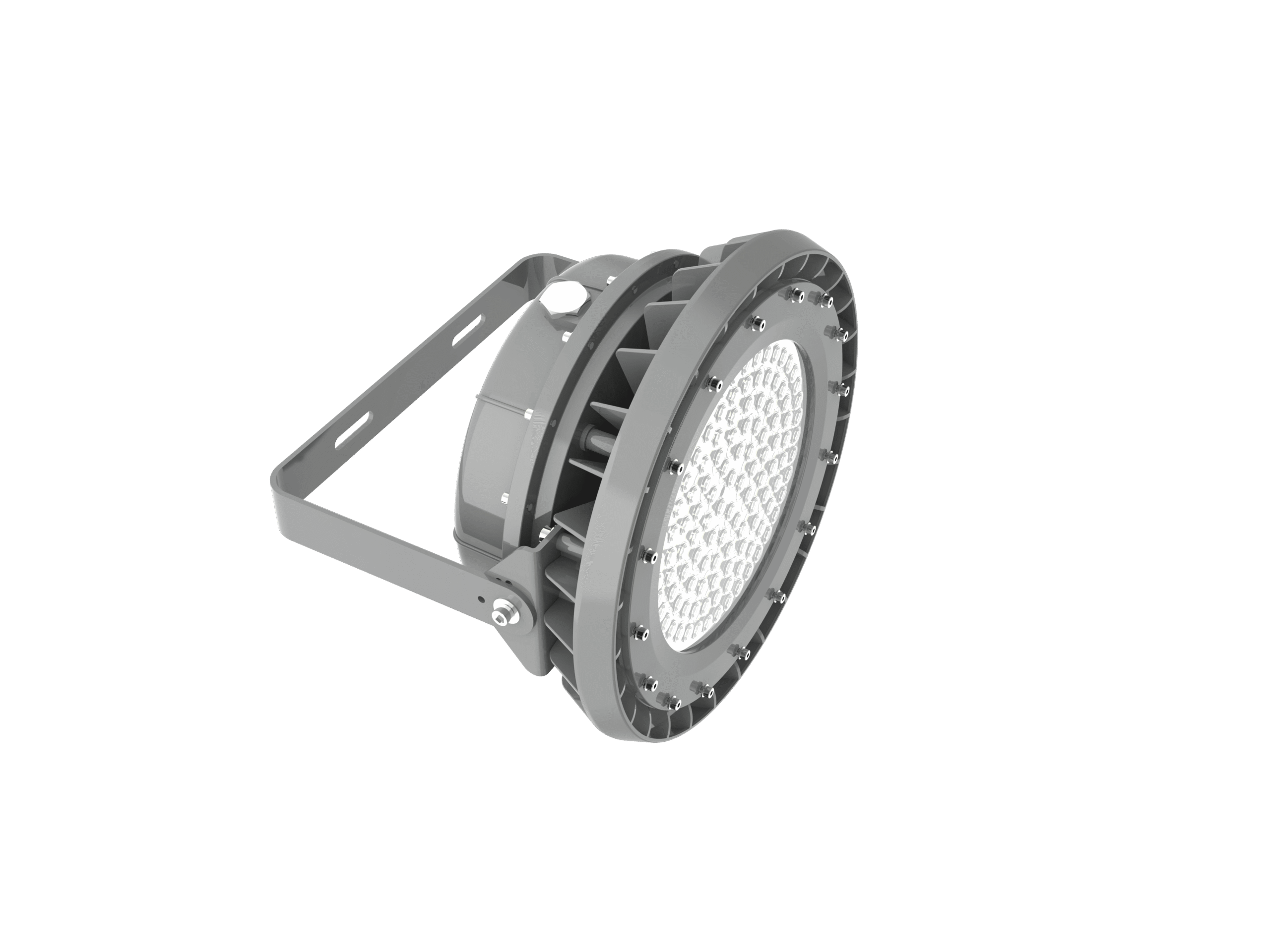

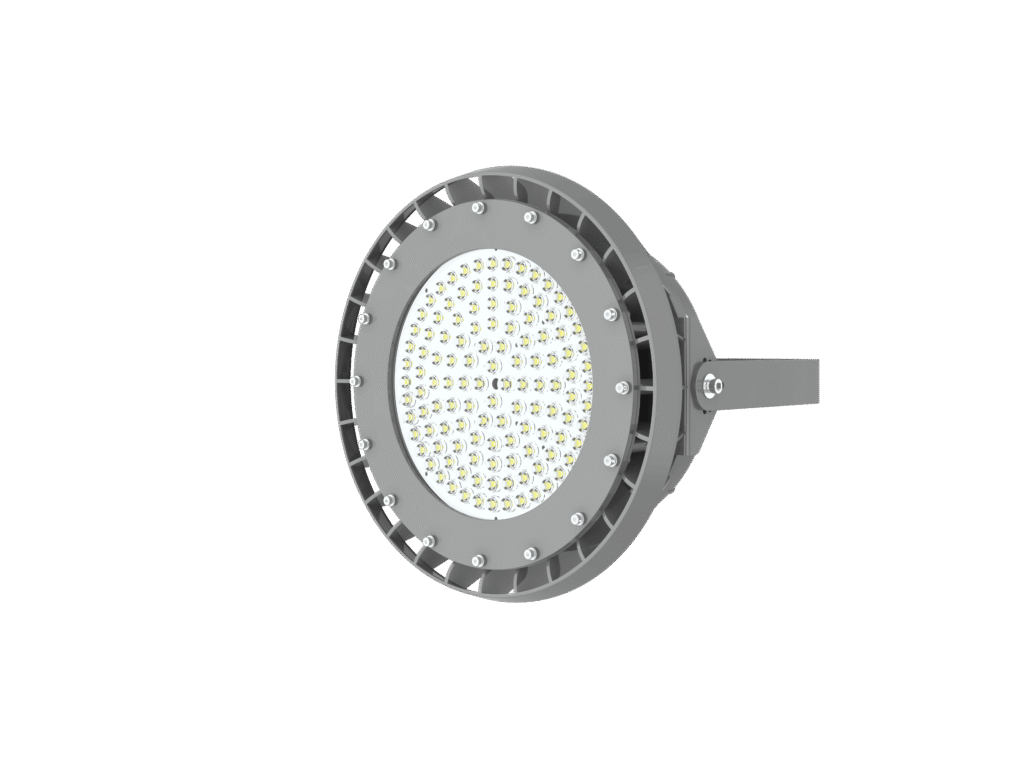

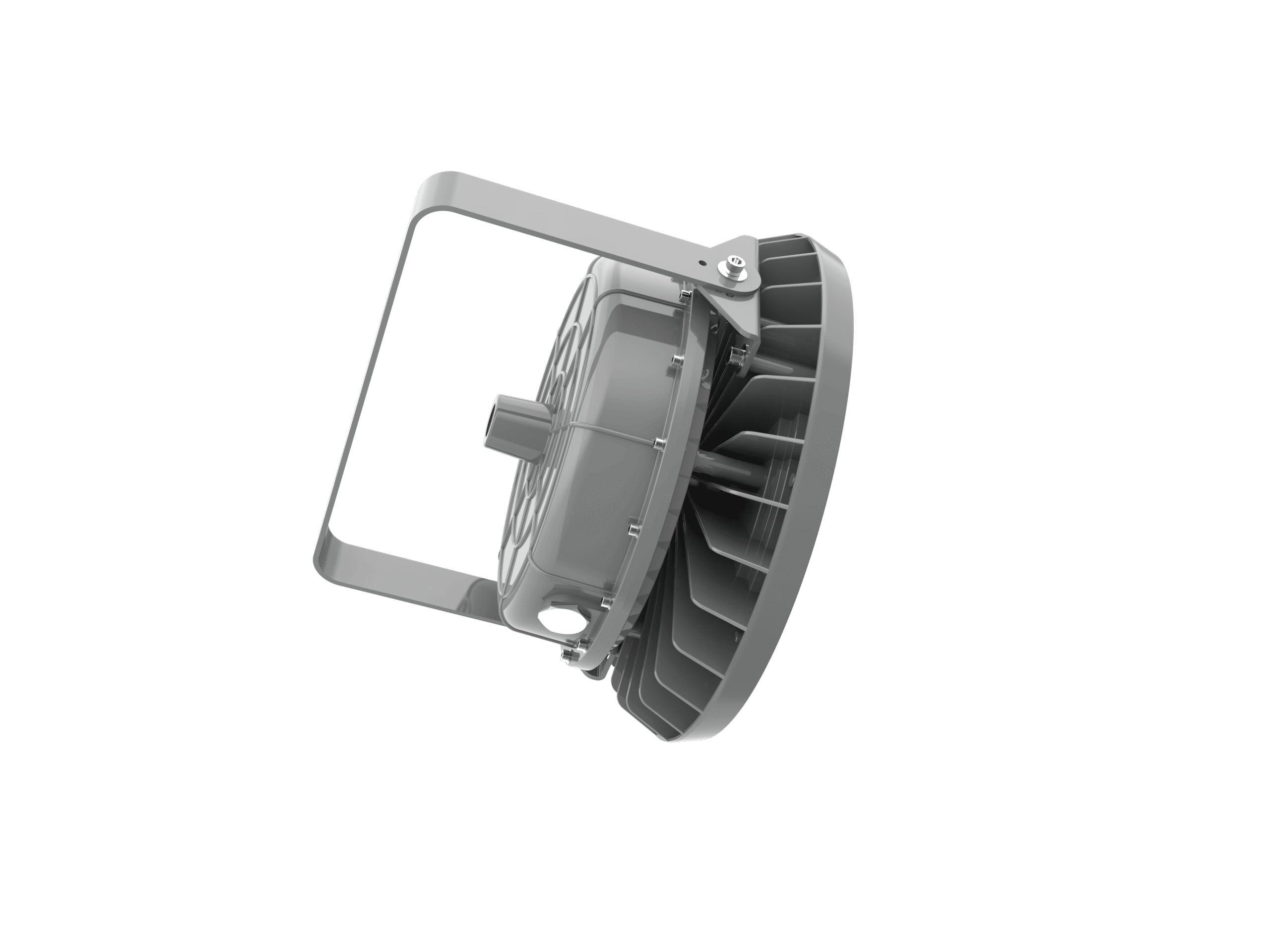

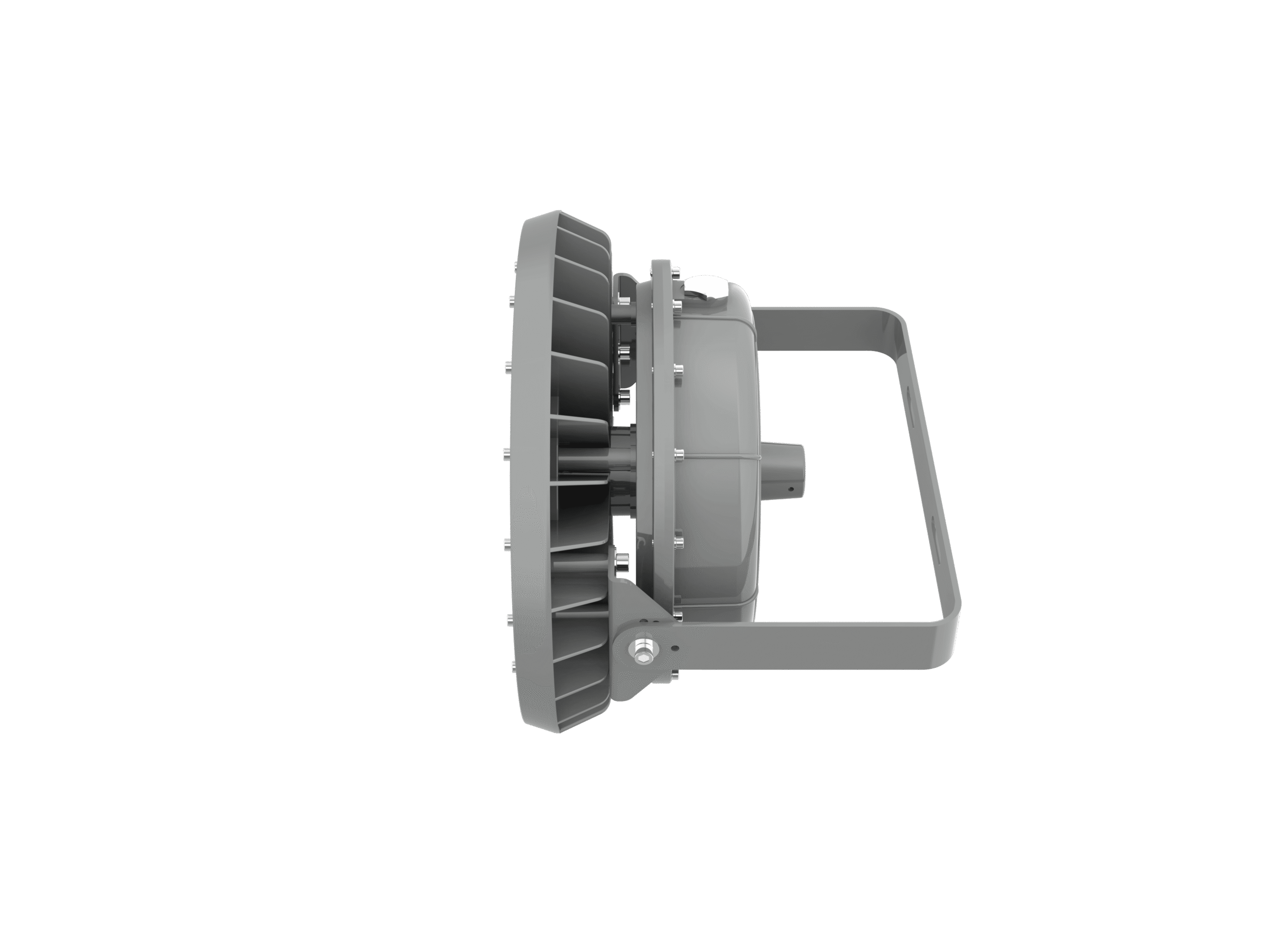

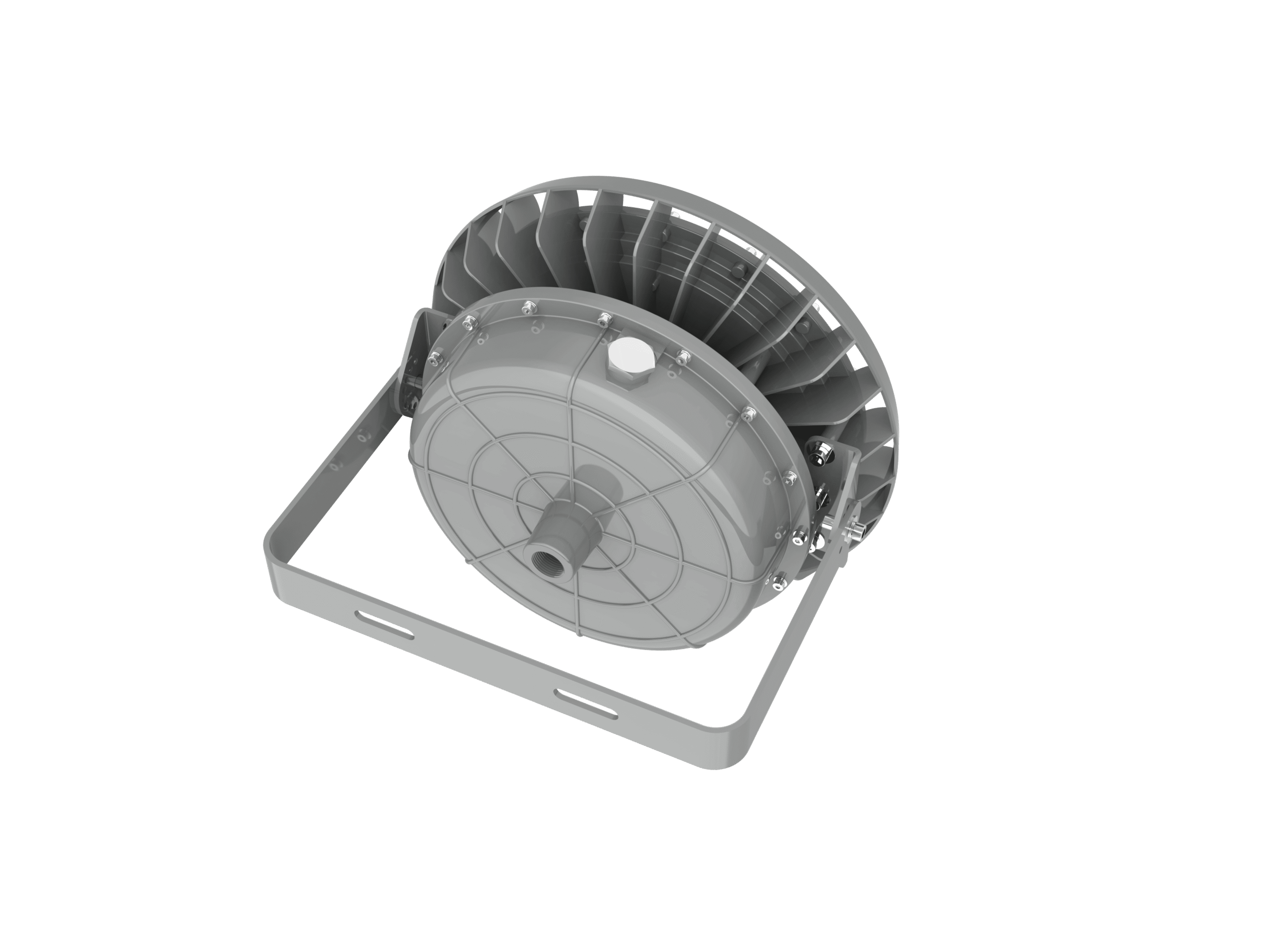

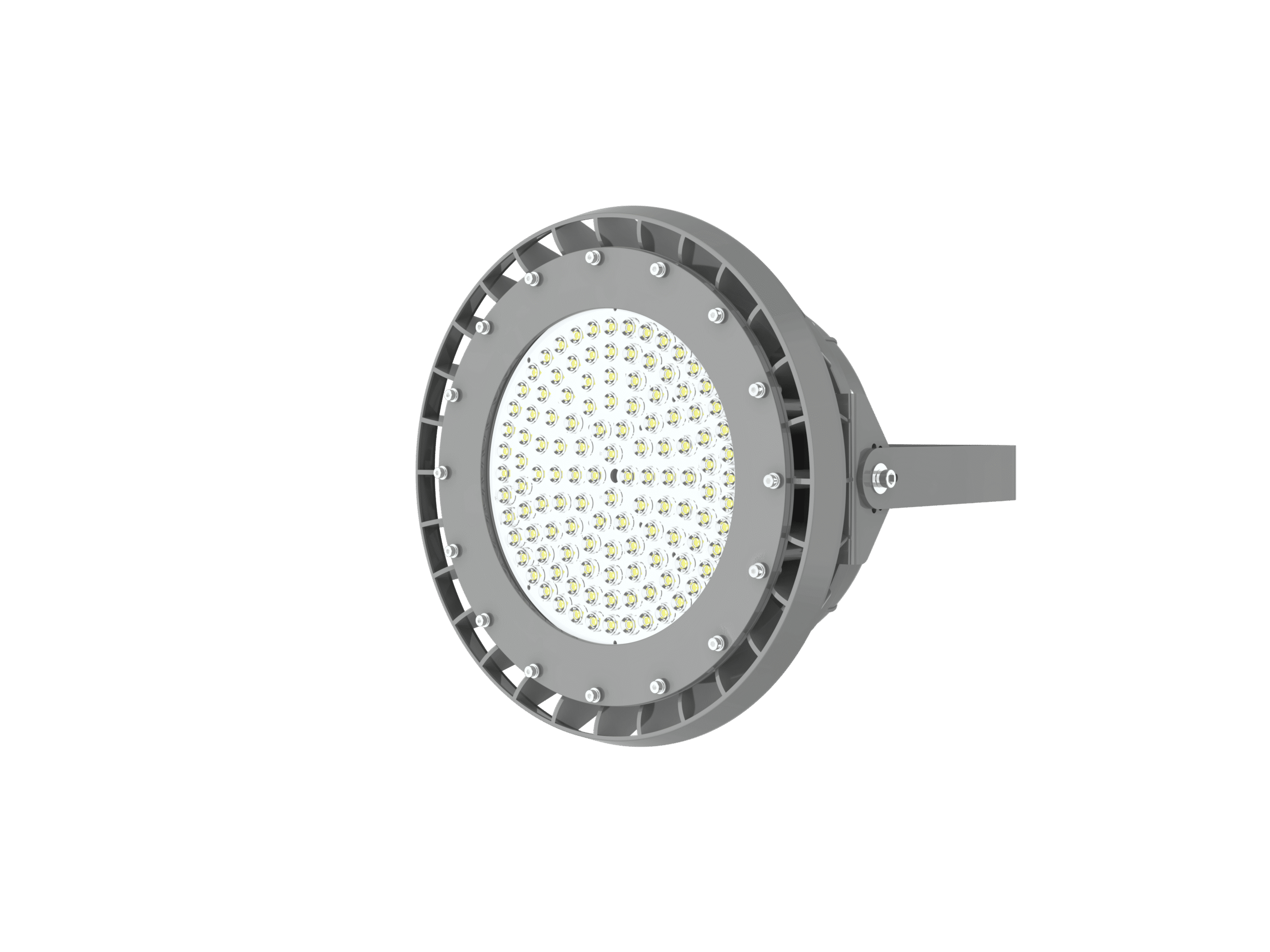

LED Luminaire B3
Select Variant
The B Series LED luminaire is the ideal choice for marine and hazardous applications. They can be used in locations where
moisture, dirt, dust, corrosion and vibration may be present, or areas where wind, water, snow or high ambient can be expected.
Contact
Follow
LED Luminaire B3
Series:
High Bay B Series
The B Series LED luminaire is the ideal choice for marine and hazardous applications. They can be used in locations where
moisture, dirt, dust, corrosion and vibration may be present, or areas where wind, water, snow or high ambient can be expected.
Features
- 0-10V dimming
- High luminous efficacy – Up to 140 lumens per watt
- Battery backup function available
- Compact and robust structure, excellent reliability
- Various installation ways for different applications
- Great impact resistance with IK08/IK10 certified
Technical Specifications
Electrical Specs
Model No.
EX-xxxWB3
Rated Power
20/40/50/60/80/100/120/150/180/200W
Input Voltage - Normal
100-277/200-480VAC
Input Frequency
50/60Hz
Power Factor
＞0.95
Emergency Time*
No Emergency Function
Input Voltage - Emergency
120-277vAc
Warranty
Warranty
5-Year Standard Warranty
LED lumen Maintenance
L70> 150,000 Operation Hours@55°C
Optical
Model No.
EX-xxxW B3
Lumen Output
2600-26000Im
Lumens Per Watt
130Im/W (for regular + clear glass)
CCT
3000K/4000K/5000K/5700K/6500K
CRI
＞70
Beam Angle
40°/60°/90°/120°/T2/T3/T5
Dimming
0-10V dimming optional
Environmental
Model No.
EX-xxxW B3
Ambient Temperature
-40°C to +40°C; -40°C to +50°C; -40°C to +65°C
Mechanical
Model No.
EX-xxxW B2
Housing Material
Copper-free aluminum
Diffuser (Optional)
Flat glass/Flat polycarbonate/Convex glass/Convex polycarbonate
Hardware
Stainless steel
Protection
1P66/IK08 (without wire guard)/IK10 (with wire guard)
Mounting
Ceiling, Wall, Stanchion 25°, Pendant, Surface
Cable Entries*
3/4" NPT (standard) ,1/2" NPT, M20 or M25 (optional) *
* For cable entries of B and B3, 3/4" NPT is standard. 1/2" NPT, M20 and M25 can be achieved with an adaptor, and customer needs to indicate which is required when placing an order.
Applications
Packing Information
Model
B3
Net Weight*
8.2 kg/18.08 Ib
Gross Weight*
10.6 kg/23.37 Ib
Quantity/Carton
1 pc
Package Dimensions (LxWxH)
500x480x290mm/19.69x18.90x11.42inch
*Please note that net weight and gross weight may be subject to change because of actual configuration.
Specifications Sheet
- 0-10V dimming
- High luminous efficacy – Up to 140 lumens per watt
- Battery backup function available
- Compact and robust structure, excellent reliability
- Various installation ways for different applications
- Great impact resistance with IK08/IK10 certified
