HZ FLD12 Recessed

Series:

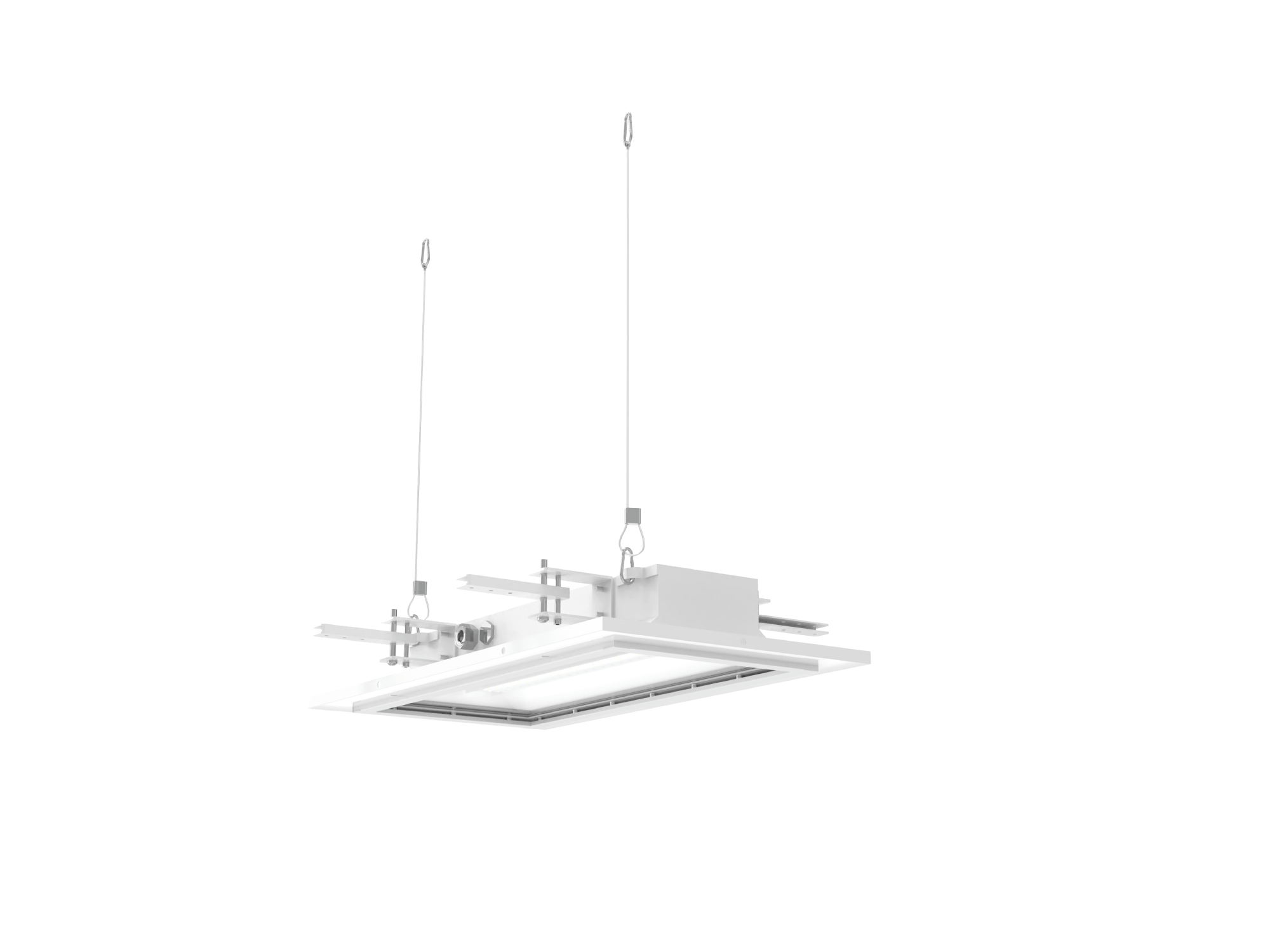

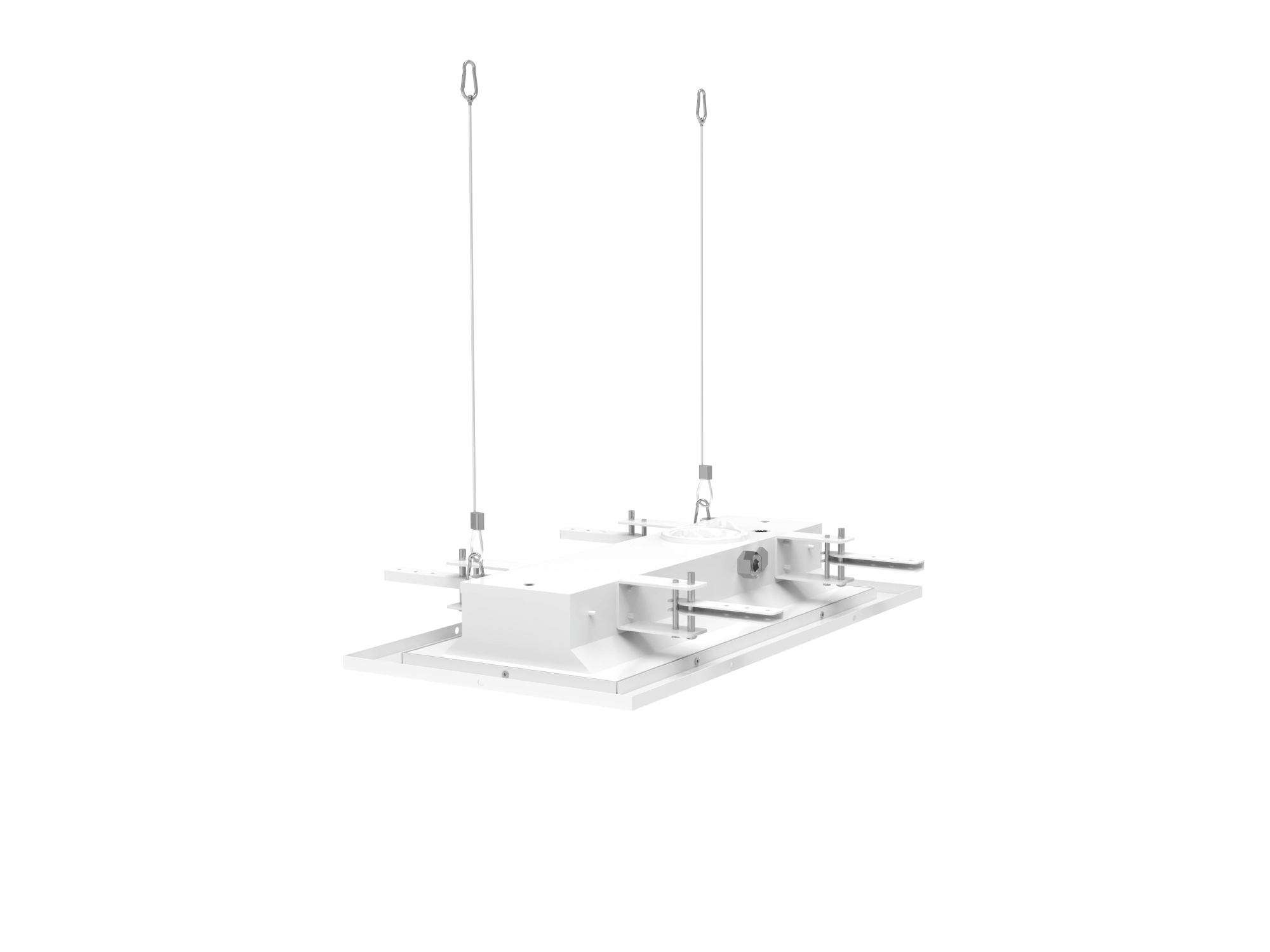

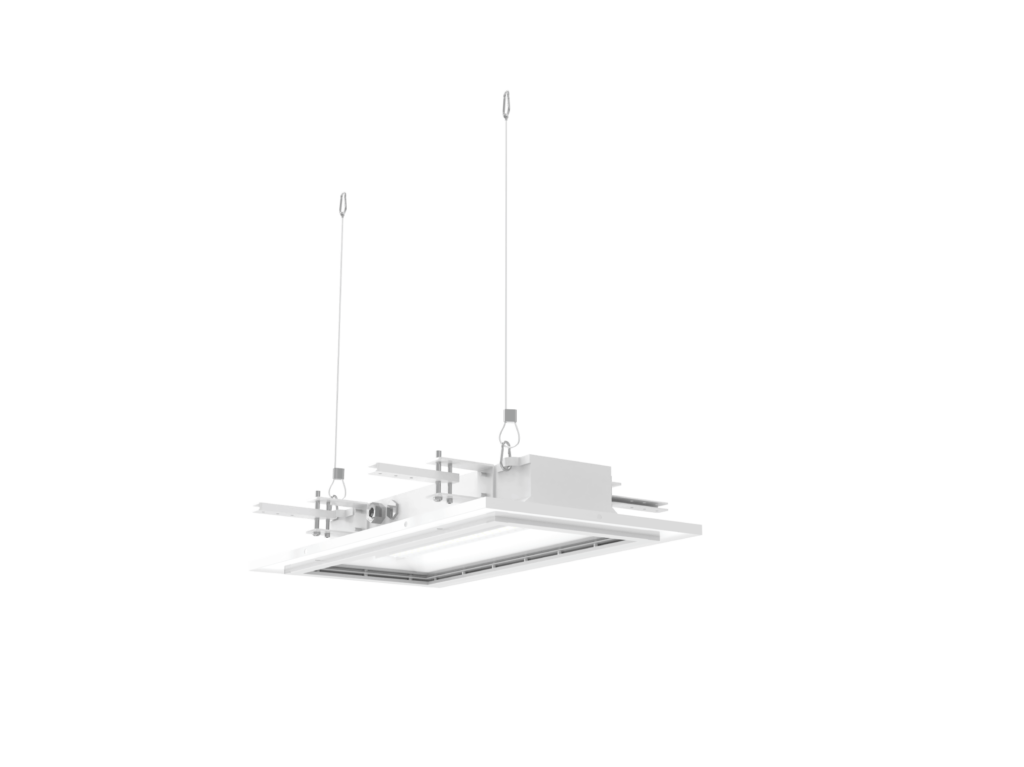

Explosion-proof Light FLD Series – Recessed Installation

HZ FLD12 Recessed

Category Recessed Paint Booth FLD Series

Select Variant

Pan american FLD series LED linear luninaires are designed to provide ideal illumination in the harshest environments, also suitable for marine applications. Available in four common sizes, it is certified for use in Class I, Division 2 and Zone 2 locations and others made hazardous by the presence of flammable vapors or gases or combustible dusts.

Product Description Electrical Optical Mechanical Ambient Temperature Application Packing Info. Warranty Resources & Downloads

Product Gallery

Contact

HZ FLD12 Recessed

Category Recessed Paint Booth FLD Series

Series:

Explosion-proof Light FLD Series – Recessed Installation

Features

Suitable for use in Class I, Division 2 and Zone 2/22 environments
Available in four common sizes
Emergency function is optional with emergency time 3 hours
Outstanding water and dust proof performance (IP66)
High luminous e fficacy – up to 130 lumens per watt
Flexible, quick, and easy recessed installation
Safety rope included for additional protection

Technical Specifications

Electrical

Model NO for UL EX-xxxW FLD12*YZDA

Model NO for Zone 2 EX-***W RFLD1-2YZD-cc-2

Rated Power in Normal Mode 15/20/25W

Input Voltage AC120-277V/AC200-480V (Class I, Division 2); AC100-277V (Zone 2/22)

Input Frequency 50-60Hz

Emergency Function Available

Rated Power in Emergency Mode 9W

Emergency Time 3 hours

Power Supply Built-in power supply

Power Protection Over-voltage, over-current and short-circuit protection

Optical

Model NO for UL EX-xxxW FLD12*YZDA

Model NO for Zone 2 EX-***W RFLD1-2YZD-cc-2

Lumen Output 1,950-3,250lm

Lumens Per Watt 130lm/W

Beam Angle 120°

CCT 2700K/3000K/4000K/5000K/5700K/6500K

Dimming 0-10V dimming optional

Intelligent Control Microwave sensing switch

Mechanical

Model NO for UL EX-xxxW FLD12*YZDA

Model NO for Zone 2 EX-***W RFLD1-2YZD-cc-2

Housing Material AL6063 (standard); SUS304/SUS316/SPCC (optional)

Diffuser PC/Glass (Notice: Glass diffuser comes with wire guard part for safety)

Waterproof Sealing Ring Polytetrafluoroethylene

Hardware Stainless steel

Finish Powder coating

Fixture Color White

Protection IP66/IK10

Mounting Recessed Installation

Ambient Temperature

Type	T Code	Ambient Temperature
for Class I, Division 2	T4/T100°C	-40°C to +60°C
Normal for Zone 2	T6/T80°C T5/T95°C T4/T100°C	-40°C to +45°C -40°C to +55°C -40°C to +60°C
Emergency for Zone 2	T6/T80°C T5/T95°C T4/T100°C	-10°C to +45°C -10°C to +55°C -10°C to +60°C

Application

Where flammable vapors, gases, ignitable dusts, or fibers are present
Locations requiring continuous and consistent light levels in extreme ambient temperatures
Where corrosive, wet, dusty, hot and/or cold conditions exist
Marine, wet locations and hose-down environments
Manufacturing plants, chemical or pharmaceutical facilities, loading platforms, food and alcohol factories, paper mills

Packing Information

Model FLD12

Product Dimensions (LxWxH)(Outer Frame NOT Included) 605x275x120mm/ 23.8x10.8x4.7inch

Quantity/Carton 1 pc

Gross Weight 9kg/19.8lb

Package Dimensions (LxWxH) 700x350x175mm/27.6x13.8x6.9inch

Note:
1. There is an error of 0.5kg in net weight and gross weight.
2.The outer frame is used as accessory which is with a separate packaging.
3.Packaging information of the outer frame is not included in this spec sheet since it will generally be based on customer orders.
