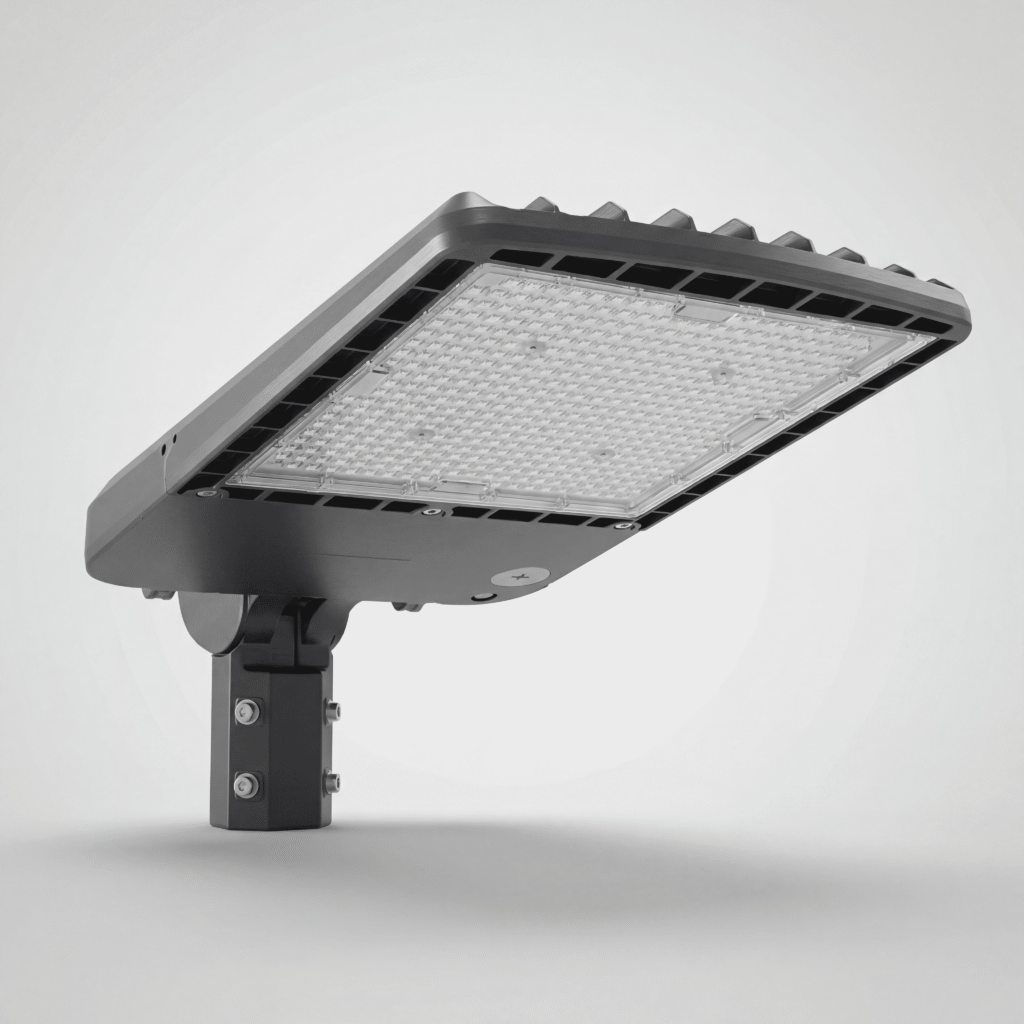

LED Area light – 8th gen
Series:
Outdoor Lighting
Features
- Streamlined shape—simple, clean and stylish. 3CCT & Wattage Selectable.
- UV resistant polycarbonate optical lens with high impact capability—IK09.
- Type III, Type V, Type IV lens interchangeable and rotatable. Fast and easy installation by 1 person.
- Multiple Installation Accessories for choice—Slip-fitter / Adjustable arm / Fixed arm / Trunnion / Yoke / Slip-fitter long arm / Fixed adapter arm.
- Excellent heat dissipation management ensures long life-span, with very low driver Tc point. Suitable for wet location.
- Great air-pressure management for avoiding distortion of the lens and water-proof failure over time.
- AC120-347V & 277-480V available. DLC 5.1 Premium and UL listed.
Technical Specifications
Specifications
| Part No. | Input Voltage | Power | Lumens | CCT | Light Angle |
|---|---|---|---|---|---|
|
TS-SL0810-100W-H3-50K TS-SL0815-150W-H3-50K TS-SL0820-200W-H3-50K TS-SL0824-240W-H3-50K TS-SL0830-300W-H3-50K TS-SL0815-150W-H3-TCP TS-SL0820-200W-H3-TCP TS-SL0824-240W-H3-TCP TS-SL0830-300W-H3-TCP |
AC120-277V |
100W 150W 200W 240W 300W 150-100-70W 200-150-100W 240-200-150W 300-240-200W |
13,000lm 19,500lm 26,000lm 31,200lm 39,000lm 19,500-13,000-9,100lm 26,000-19,500-13,000lm 31,200-26,000-19,500lm 39,000-31,200-26,000lm |
5000K 30-40-50K |
Type ll Type III Type IV Type V |
Specifications Sheet
- Streamlined shape—simple, clean and stylish. 3CCT & Wattage Selectable.
- UV resistant polycarbonate optical lens with high impact capability—IK09.
- Type III, Type V, Type IV lens interchangeable and rotatable. Fast and easy installation by 1 person.
- Multiple Installation Accessories for choice—Slip-fitter / Adjustable arm / Fixed arm / Trunnion / Yoke / Slip-fitter long arm / Fixed adapter arm.
- Excellent heat dissipation management ensures long life-span, with very low driver Tc point. Suitable for wet location.
- Great air-pressure management for avoiding distortion of the lens and water-proof failure over time.
- AC120-347V & 277-480V available. DLC 5.1 Premium and UL listed.
Dimensions
100W/150W
200W
240W/300W
Specifications
Accessories
Technical Specifications
Part Number
Part Number
TS-SL0810-100W-H3-50K, TS-SL0815-150W-H3-50K, TS-SL0820-200W-H3-50K, TS-SL0824-240W-H3-50K, TS-SL0830-300W-H3-50K, TS-SL0815-150W-H3-TCP, TS-SL0820-200W-H3-TCP, TS-SL0824-240W-H3-TCP, TS-SL0830-300W-H3-TCP
Electrical Specs
Input Voltage
AC120-277V
Power
100W, 150W, 200W, 240W, 300W, 150-100-70W, 200-150-100W, 240-200-150W, 300-240-200W
Lighting Performance
Lumens
13,000lm, 19,500lm, 26,000lm, 31,200lm, 39,000lm, 19,500-13,000-9,100lm, 26,000-19,500-13,000lm, 31,200-26,000-19,500lm, 39,000-31,200-26,000lm
Correlated Color Temperature
5000K, 30-40-50K
Angles
