Series:
EX-A Series
HZ EX-A
Select Variant

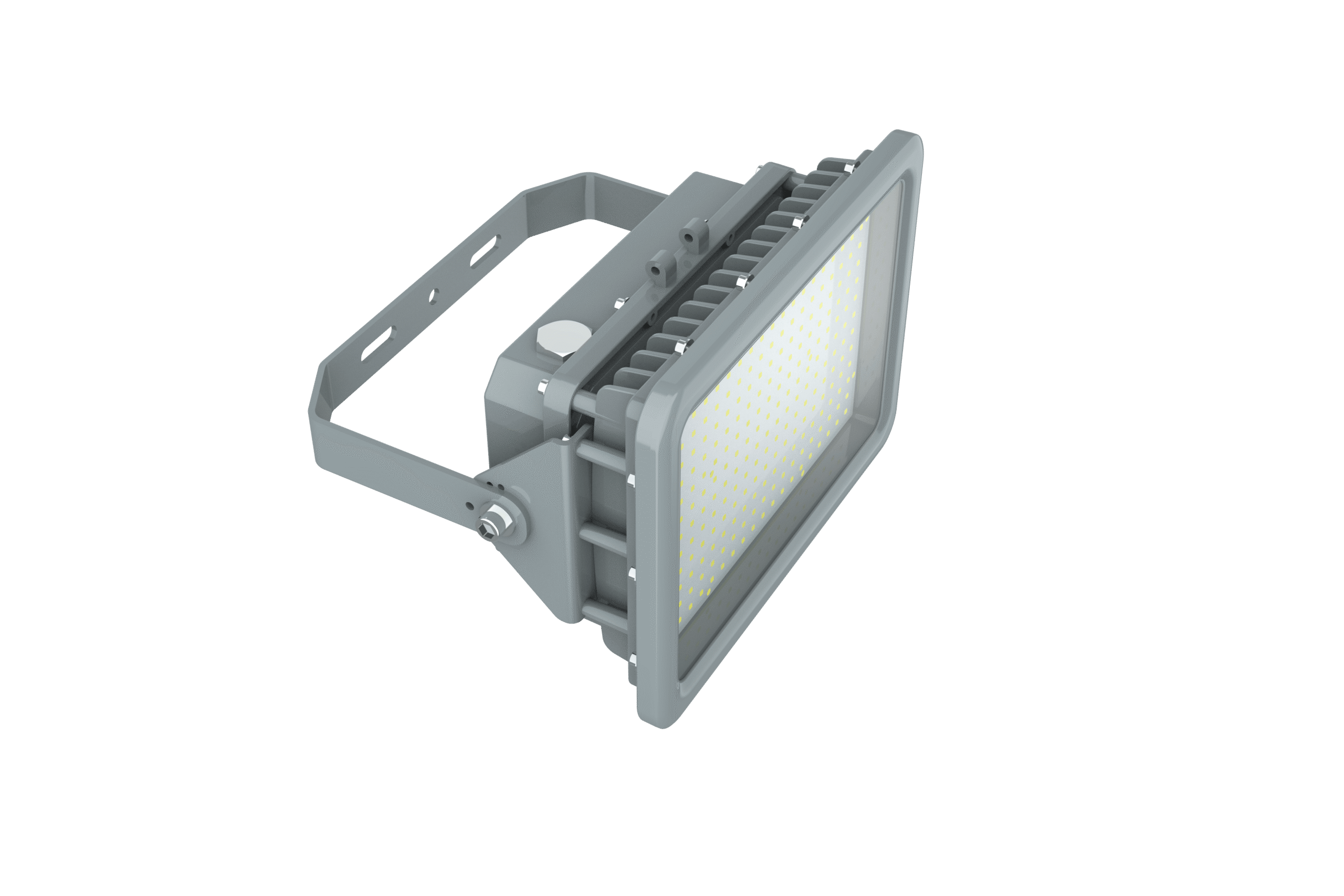

The A Series LED luminaire is the ideal choice for marine and hazardous applications. They can be used in locations where moisture, dirt, dust, corrosion and vibration may be present, or areas where wind, water, snow or high ambient can be expected.
Contact
Follow
HZ EX-A
Series:
EX-A Series
The A Series LED luminaire is the ideal choice for marine and hazardous applications. They can be used in locations where moisture, dirt, dust, corrosion and vibration may be present, or areas where wind, water, snow or high ambient can be expected.
Features
- 0-10V dimming optional
- High luminous efficacy – Up to 140lumens per watt
- Compact and robust structure, excellent reliability
- Various installation ways for different applications
- Great impact resistance with IK08 certified
- Die-cast aluminum housing, great corrosion resistance and cooling performance
Technical Specifications
Electrical
| Specification | Rated Power | Input Voltage | Input Frequency | Power Factor | Emergency Time* |
|---|---|---|---|---|---|
|
EX-60W AYZDA EX-80W AYZDA EX-100W AYZDA |
60W 80W 100W |
100-277/200-480VAC | 50/60Hz | >0.95 | No emergency function |
Optical
| Specification | Lumen Output | Lumens Per Watt | CCT | CRI | Beam Angle | Dimming |
|---|---|---|---|---|---|---|
|
EX-60W AYZDA EX-80W AYZDA EX-100W AYZDA |
8400lm 11200lm 14000lm |
140lm/W | 3000K-6500K | >70 | 40°/60°/90°/120° | 0-10V dimming optional |
Mechanical
| Specification | Housing Material | Lens | Hardware | Visor | Fixture Color | Protection | Mounting | Cable Entries |
|---|---|---|---|---|---|---|---|---|
|
EX-60W AYZDA EX-80W AYZDA EX-100W AYZDA |
Die-cast aluminum |
Tempered glass & PC |
Stainless steel | Available |
Gray RAL7040 (Standard) |

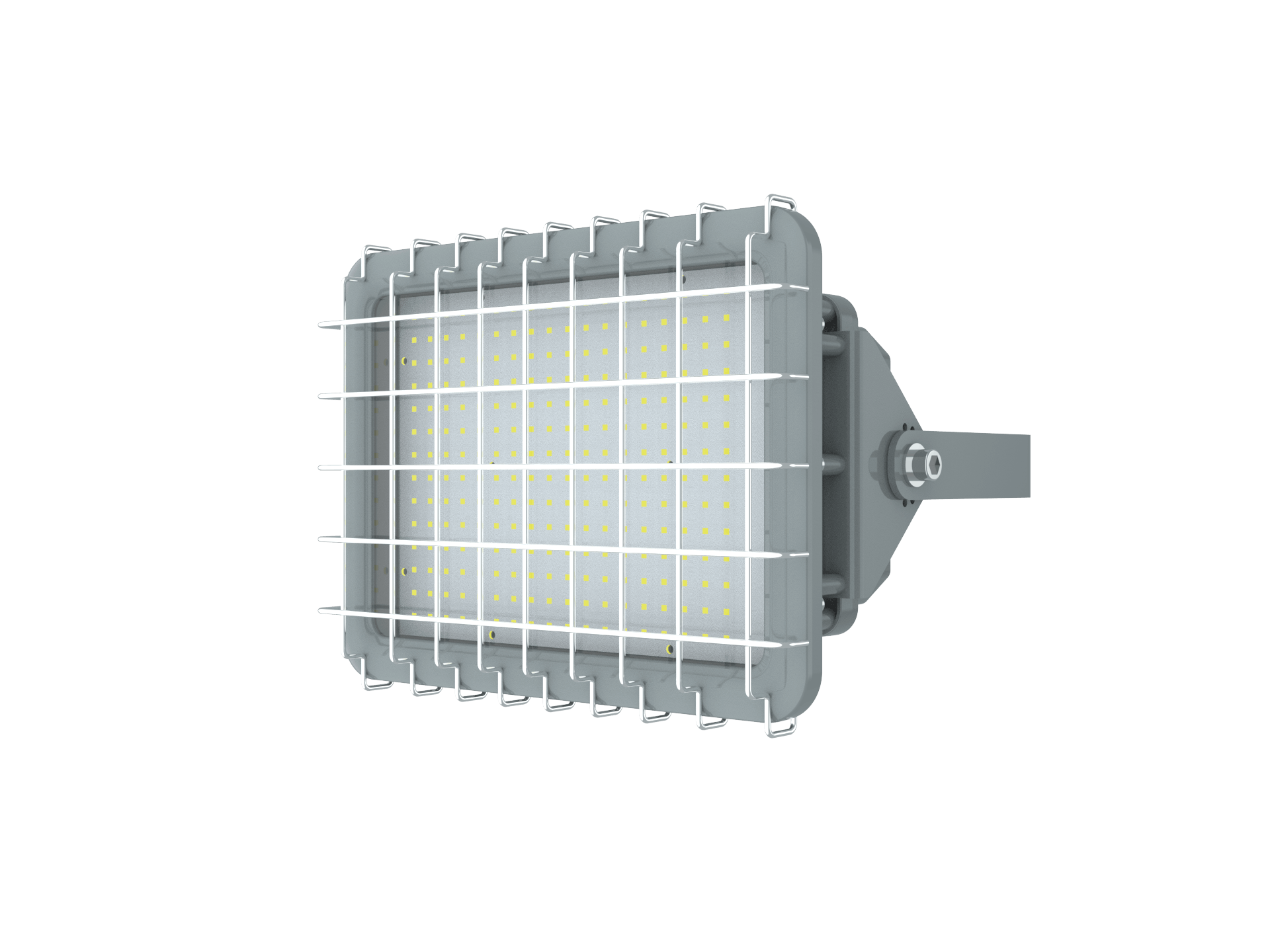

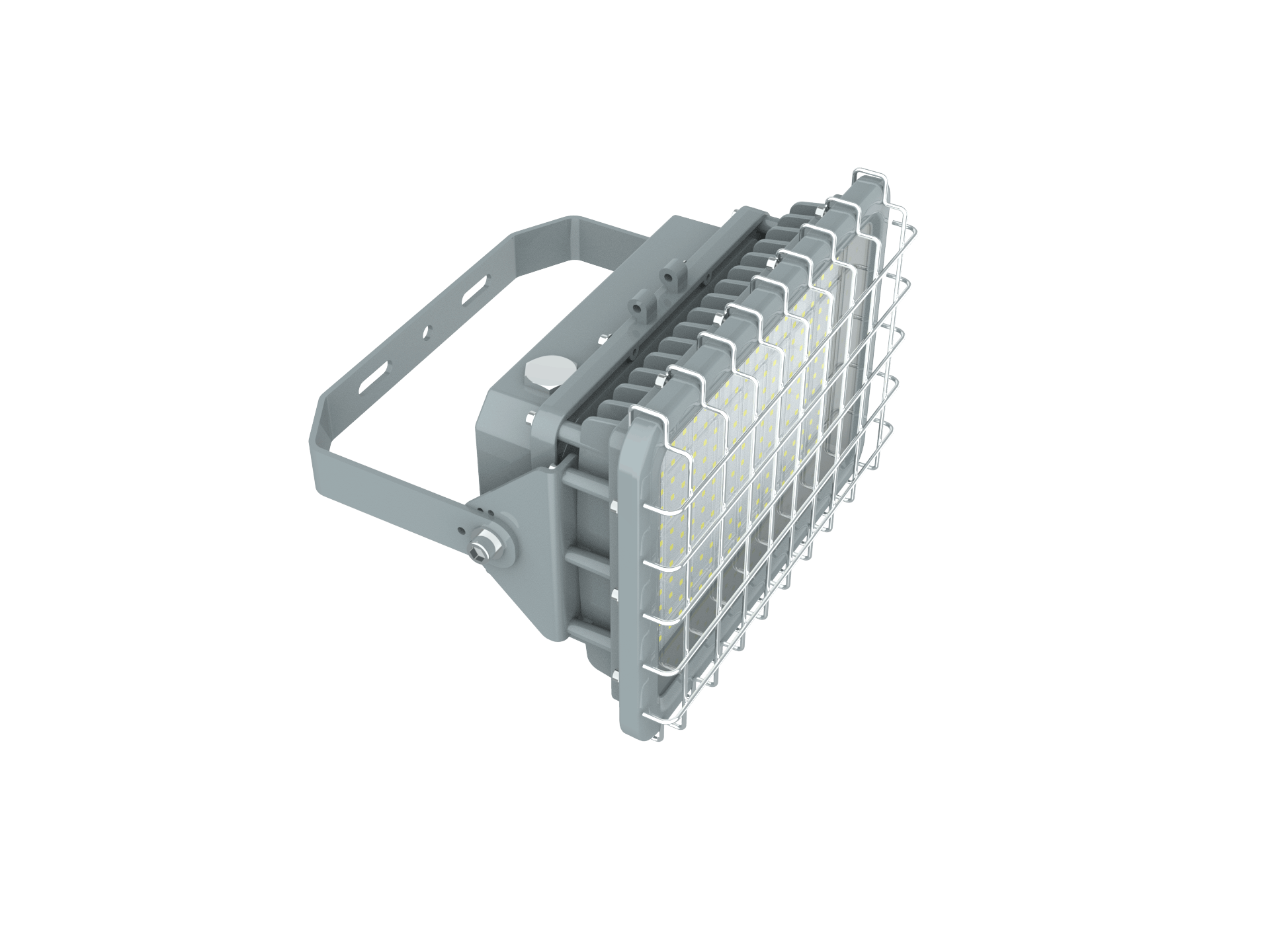

IP66/IP67/ IK08 (glass cover)/ IK10 (with wire guard) |
Ceiling Wall, Hook Trunnion Pole Stanchion |
Side: 3/4" NPT (standard); M20, M25, 1/2" NPT (optional) Top: 3/4" NPT (standard) |
Ambient Temperature
| Models | Temperature |
|---|---|
|
A, 20-120W A, 20-100W, Class I Division 2 Group A, B, C, D |
-40°C to +40°C (-40°F to +104°F) -40°C to +40°C (-40°F to +104°F) |
Applications
Packing Information
Model
A
Net Weight
6.95 kg/15.32 Ib
Package Dimensions
450x340x370mm/17.72x13.39x14.57 inch
Quantity/Carton
1 pc
Gross Weight
9.50 kg/20.94 Ib
Specifications Sheet
- 0-10V dimming optional
- High luminous efficacy – Up to 140lumens per watt
- Compact and robust structure, excellent reliability
- Various installation ways for different applications
- Great impact resistance with IK08 certified
- Die-cast aluminum housing, great corrosion resistance and cooling performance
Dimensions
Specifications
Accessories
Technical Specifications
Part Number
Part Number
Electrical Specs
Input Voltage
100-277/200-480VAC
Power
Lighting Performance
Lumens
Correlated Color Temperature
Angles
Resources and Downloads
About Product
The A Series LED luminaire is the ideal choice for marine and hazardous applications. They can be used in locations where moisture, dirt, dust, corrosion and vibration may be present, or areas where wind, water, snow or high ambient can be expected.
