Series:
EX-A Series
HZ EX-A3
Select Variant
The A Series LED luminaire is the ideal choice for marine and hazardous applications. They can be used in locations where moisture, dirt, dust, corrosion and vibration may be present, or areas where wind, water, snow or high ambient can be expected.
Contact
Follow

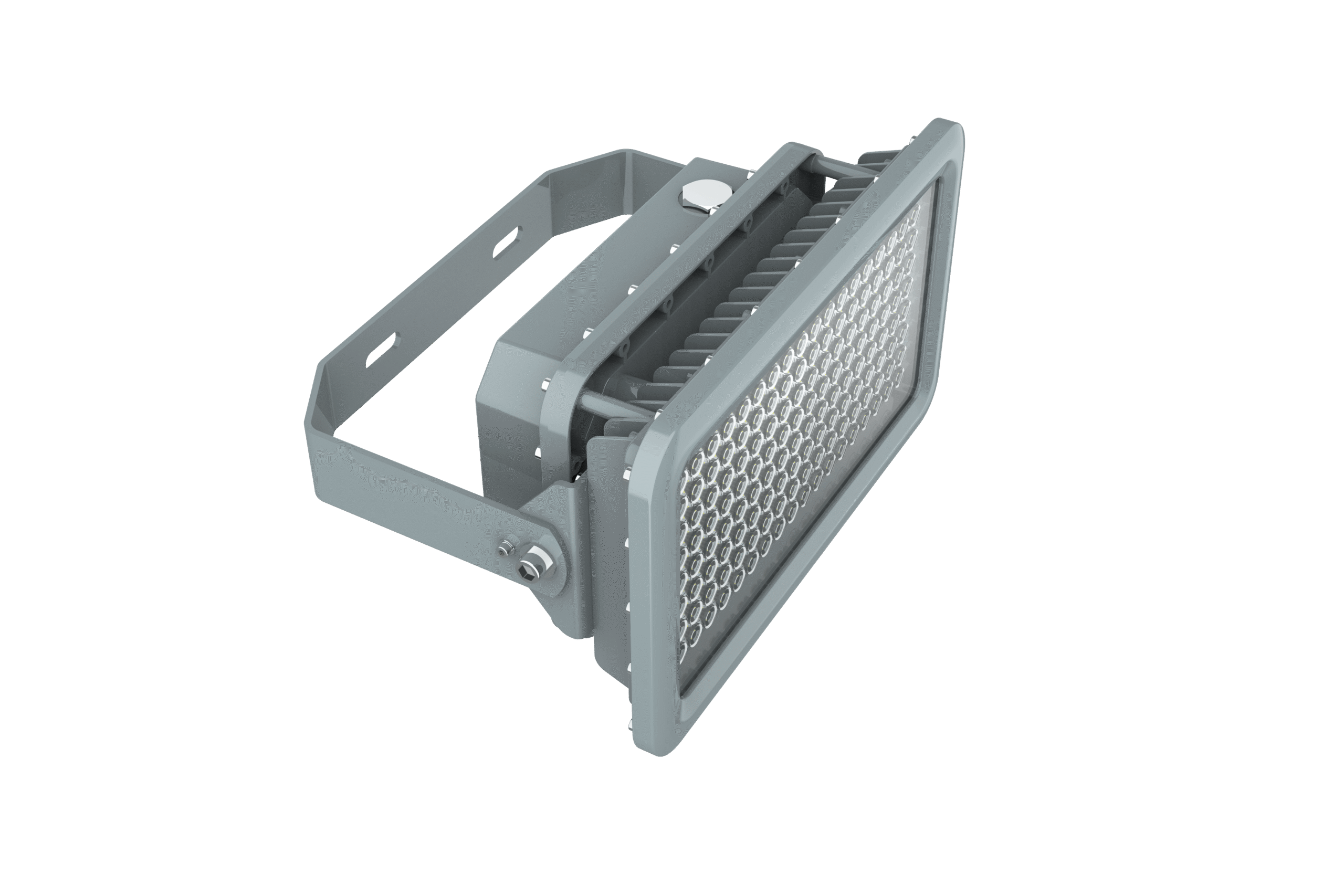

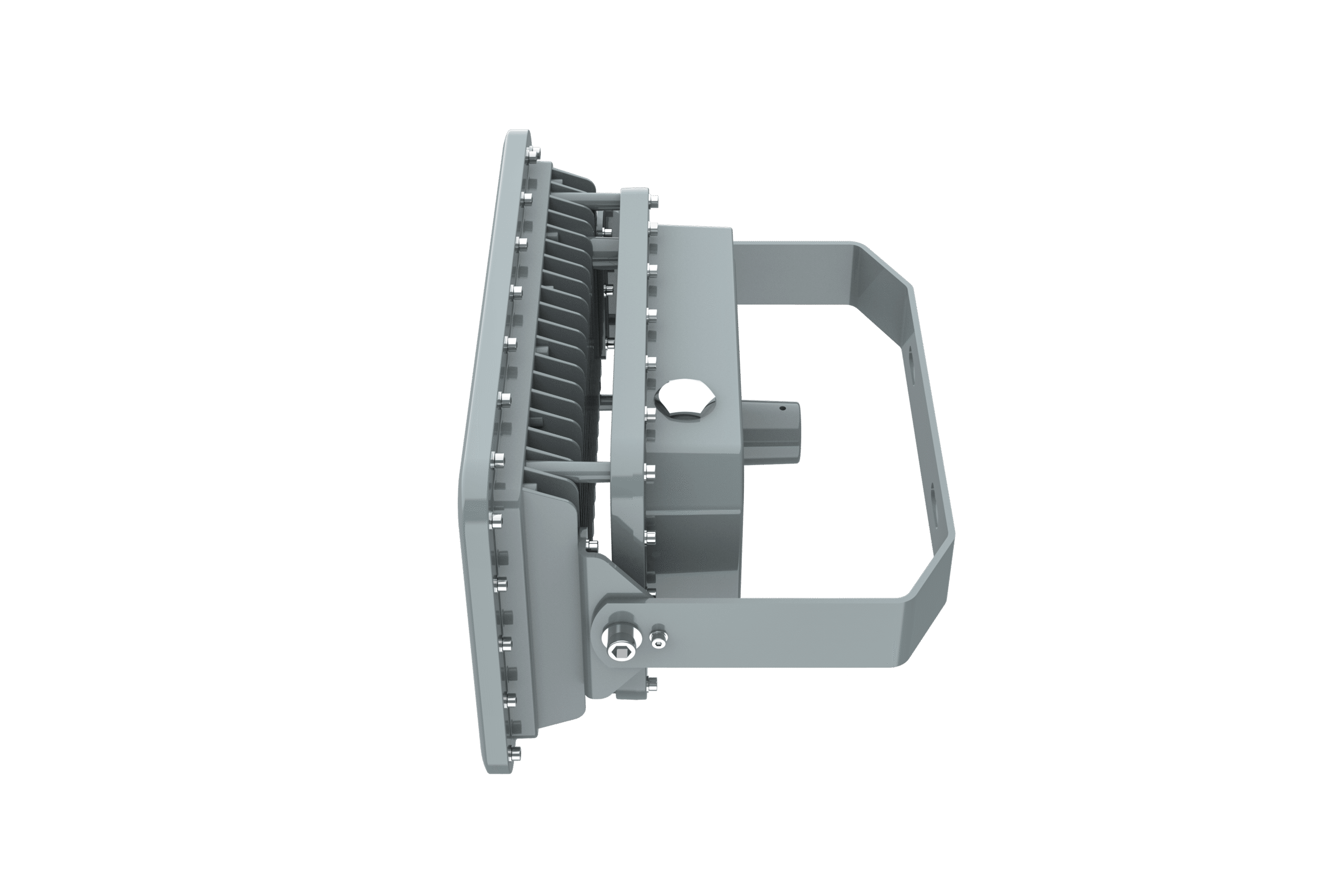

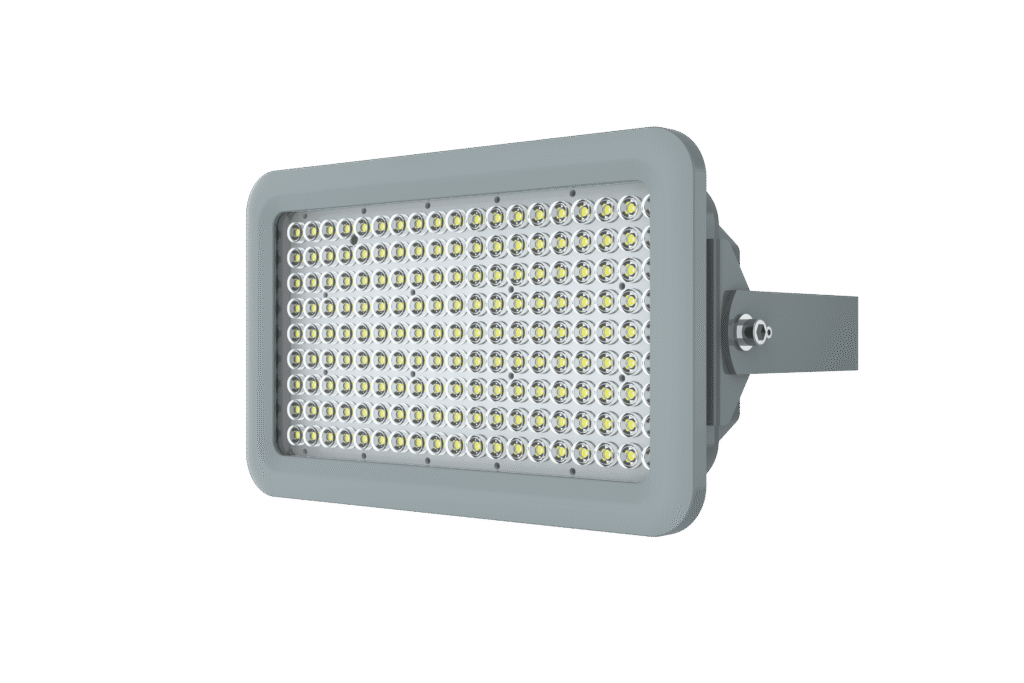

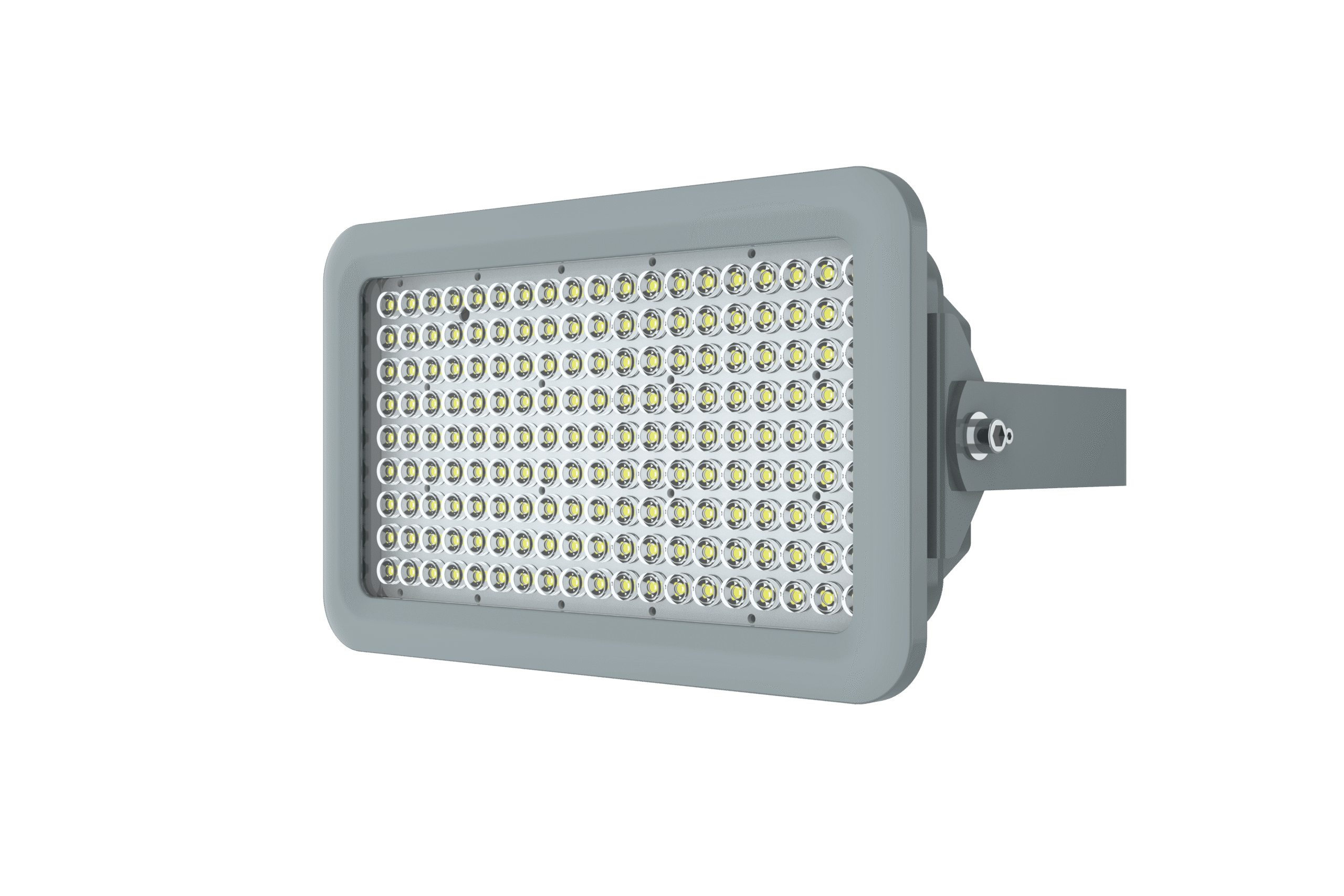

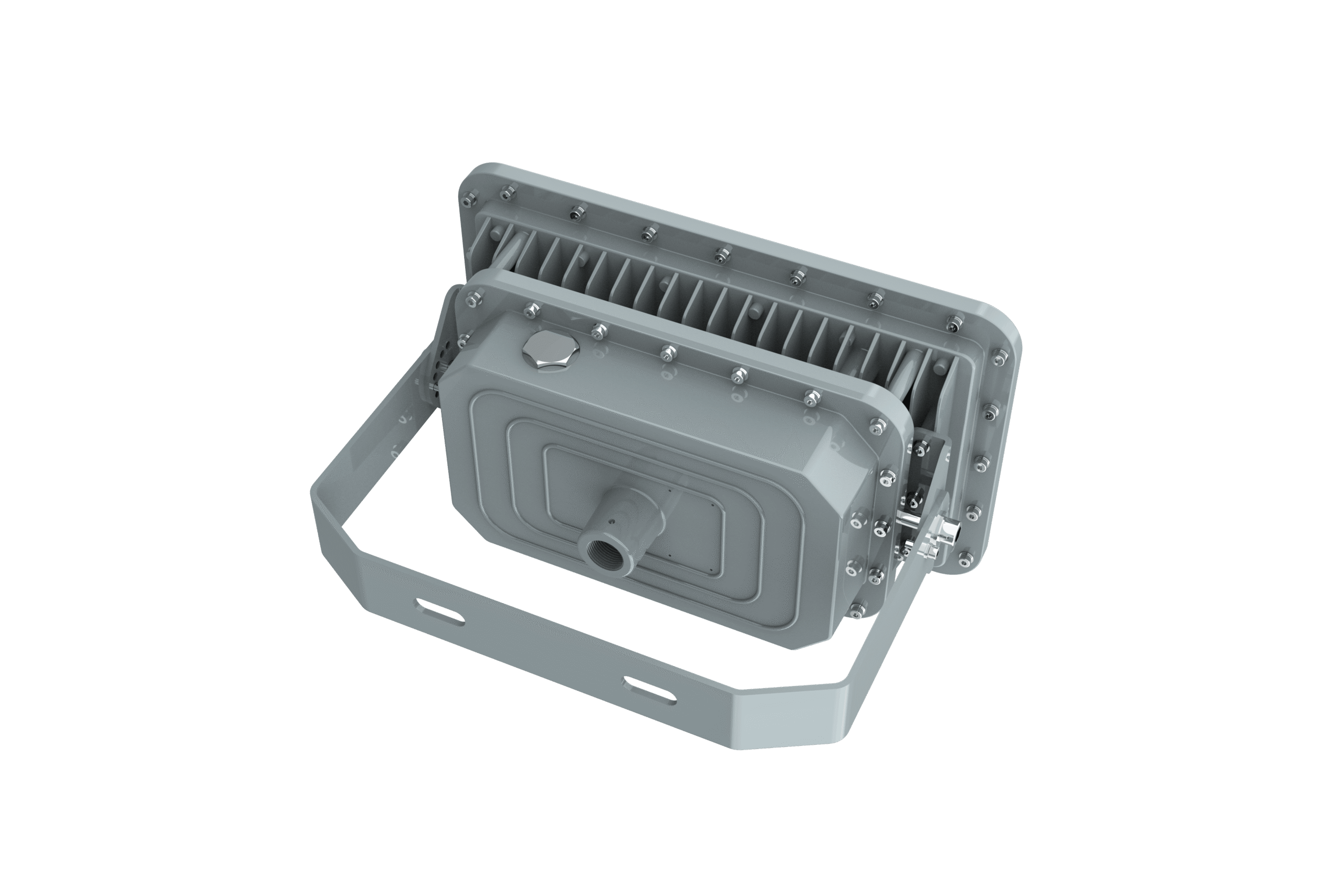

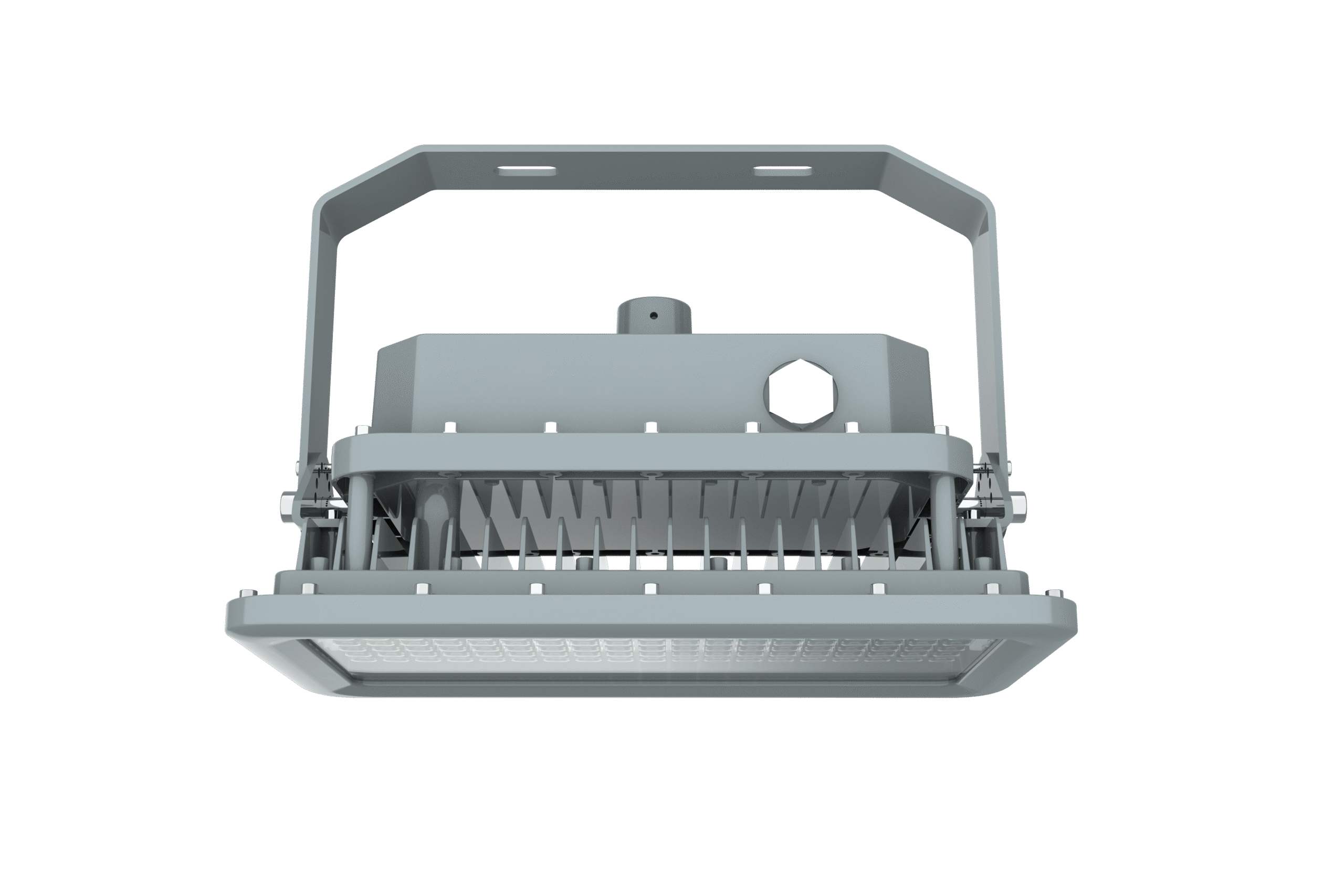

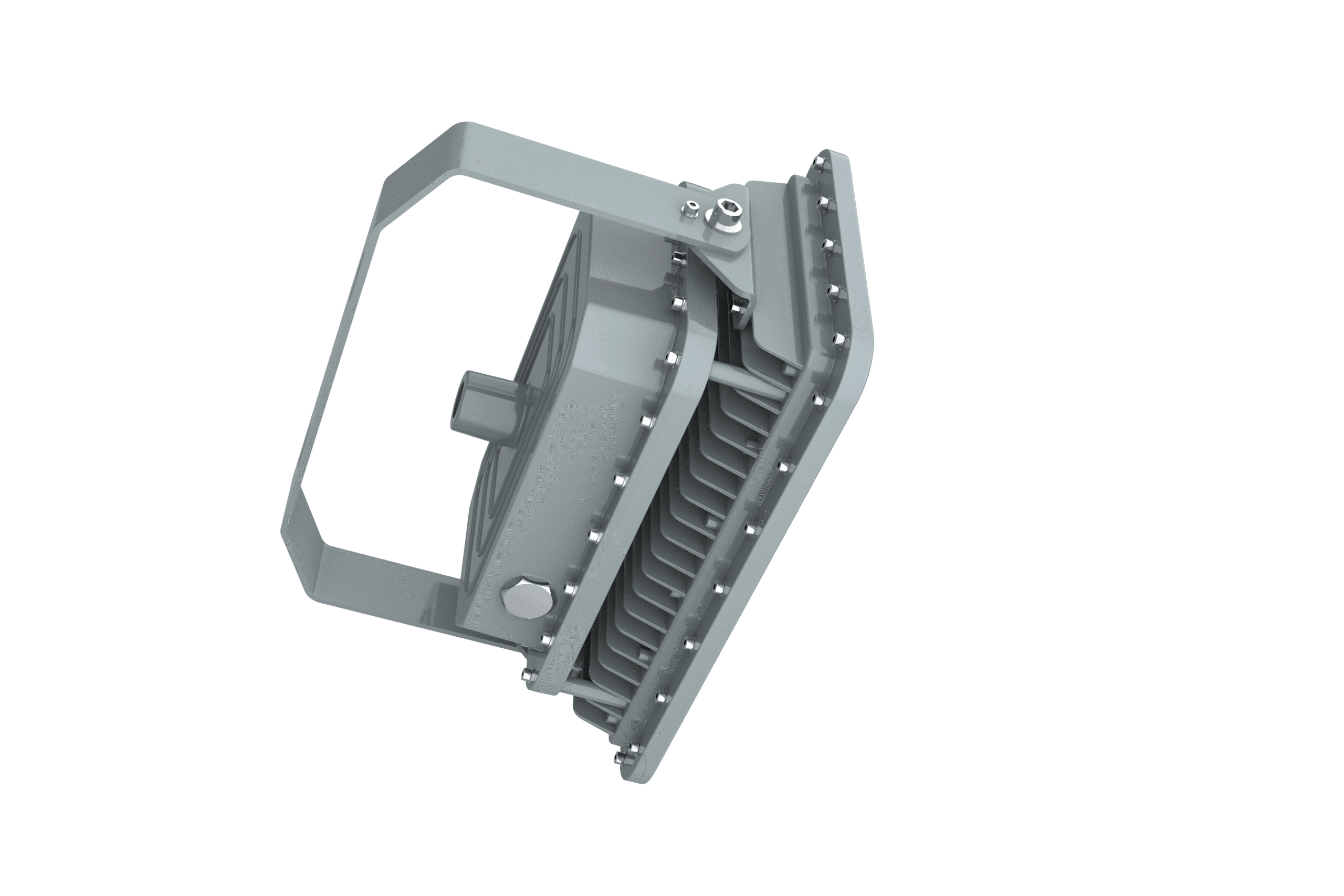

HZ EX-A3
Series:
EX-A Series
The A Series LED luminaire is the ideal choice for marine and hazardous applications. They can be used in locations where moisture, dirt, dust, corrosion and vibration may be present, or areas where wind, water, snow or high ambient can be expected.
Features
- 0-10V dimming optional
- High luminous efficacy – Up to 140lumens per watt
- Compact and robust structure, excellent reliability
- Various installation ways for different applications
- Great impact resistance with IK08 certified
- Die-cast aluminum housing, great corrosion resistance and cooling performance
Technical Specifications
Electrical
| Specification | Rated Power | Input Voltage | Input Frequency | Power Factor | Emergency Time* |
|---|---|---|---|---|---|
|
EX-120W A3YZDA EX-150W A3YZDA EX-180W A3YZDA EX-200W A3YZDA |
120W 150W 180W 200W |
120-277/277-480VAC | 50/60Hz | >0.95 |
Optional (1.5 hours) No emergency function |
Optical
| Specification | Lumen Output | Lumens Per Watt | CCT | CRI | Beam Angle | Dimming |
|---|---|---|---|---|---|---|
|
EX-120W A3YZDA EX-150W A3YZDA EX-180W A3YZDA EX-200W A3YZDA |
16800lm 21000lm 25200lm 28000lm |
140lm/W | 3000K-6500K | >70 | 40°/60°/90°/120° | 0-10V dimming optional |
Mechanical
| Specification | Housing Material | Lens | Hardware | Visor | Fixture Color | Protection | Mounting | Cable Entries |
|---|---|---|---|---|---|---|---|---|
|
EX-120W A3YZDA EX-150W A3YZDA EX-180W A3YZDA EX-200W A3YZDA |
Die-cast aluminum |
Tempered glass & PC |
Stainless steel | Available |
Gray RAL7040 (Standard) |
IP66/IP67/ IK08 (glass cover)/ IK10 (with wire guard) |
Ceiling Wall, Hook Trunnion Pole Stanchion |
Side: 3/4" NPT (standard); M20, M25, 1/2" NPT (optional) Top: 3/4" NPT (standard) |
Ambient Temperature
Models
A3, 20-200W
Temperature
-40°C to +55°C (-40°F to +131°F)
Applications
Packing Information
Model
A3
Net Weight
4.15 kg/9.15 lb
Package Dimensions
365x270x305 mm/14.37x10.63x12.01 inch
Quantity/Carton
1 pc
Gross Weight
5.30 kg/11.68 lb
Specifications Sheet
- 0-10V dimming optional
- High luminous efficacy – Up to 140lumens per watt
- Compact and robust structure, excellent reliability
- Various installation ways for different applications
- Great impact resistance with IK08 certified
- Die-cast aluminum housing, great corrosion resistance and cooling performance
Dimensions
Specifications
Accessories
Technical Specifications
Part Number
Part Number
Electrical Specs
Input Voltage
100-277/200-480VAC
Power
Lighting Performance
Lumens
Correlated Color Temperature
Angles
Resources and Downloads
About Product
The A Series LED luminaire is the ideal choice for marine and hazardous applications. They can be used in locations where moisture, dirt, dust, corrosion and vibration may be present, or areas where wind, water, snow or high ambient can be expected.
