Series:
Explosion-proof Light STA1 Series
IL STA1
Select Variant

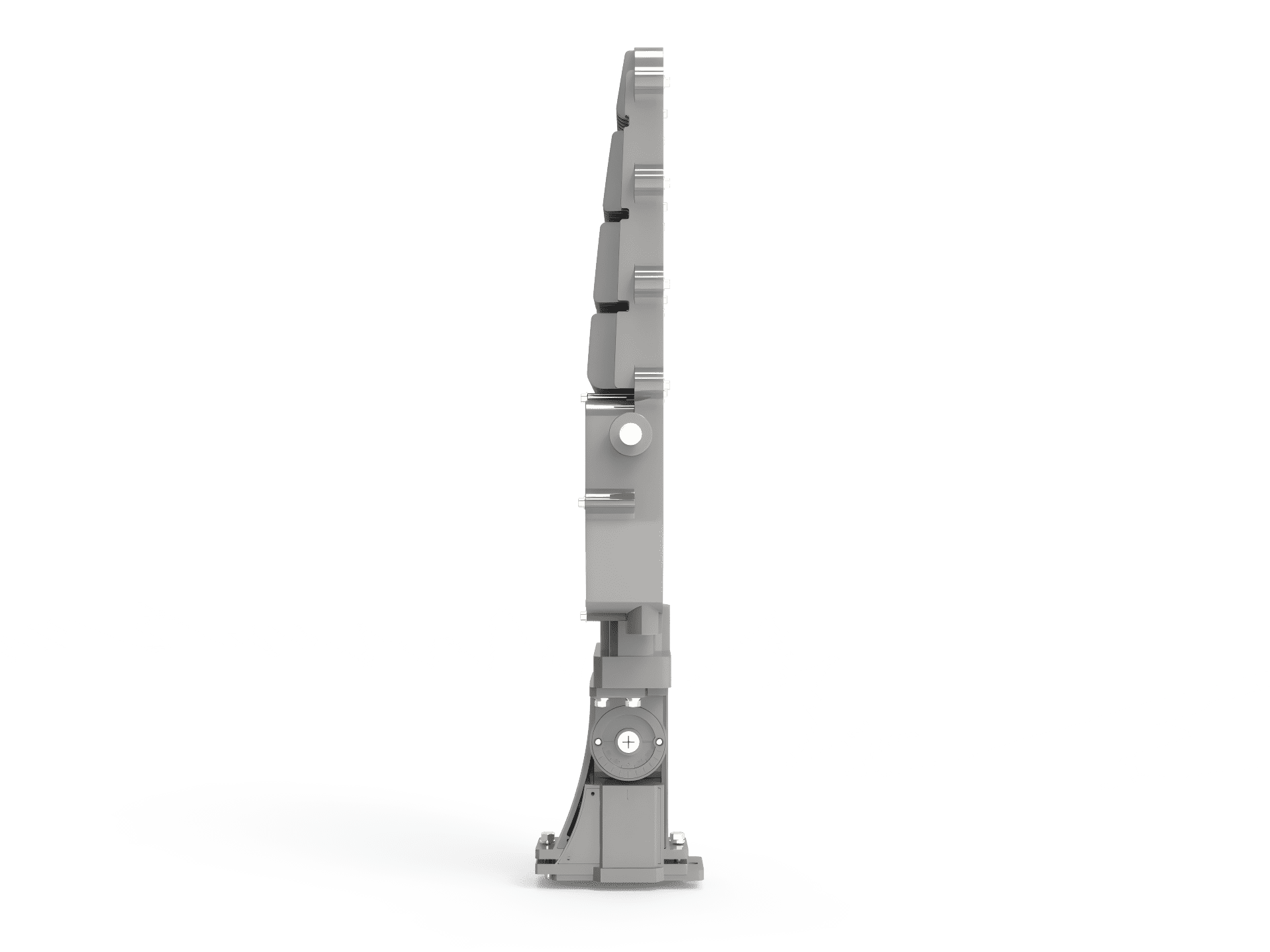

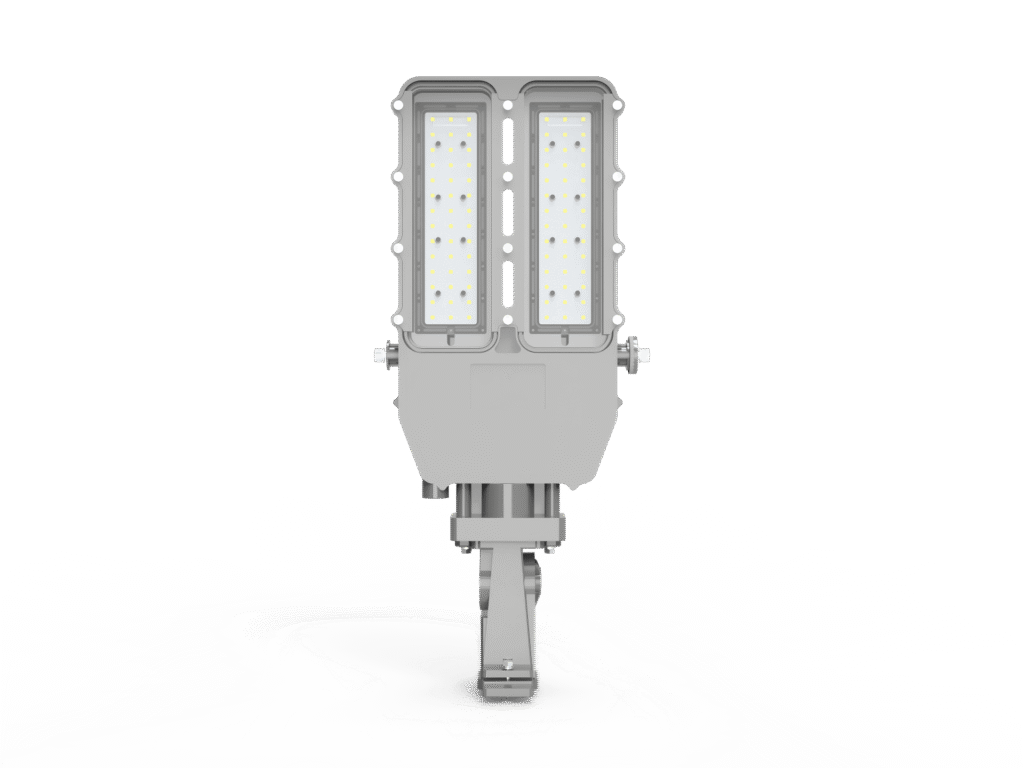

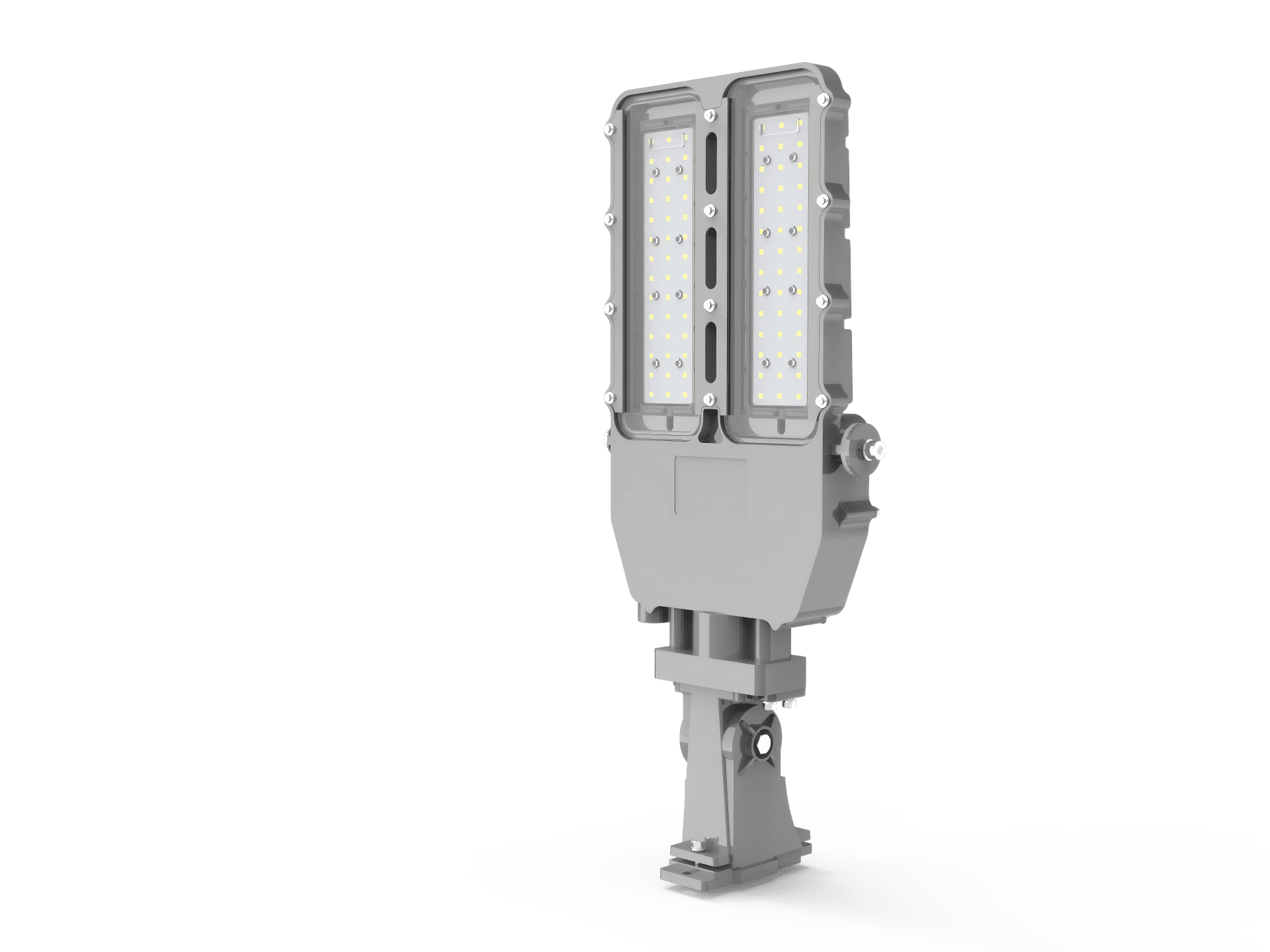

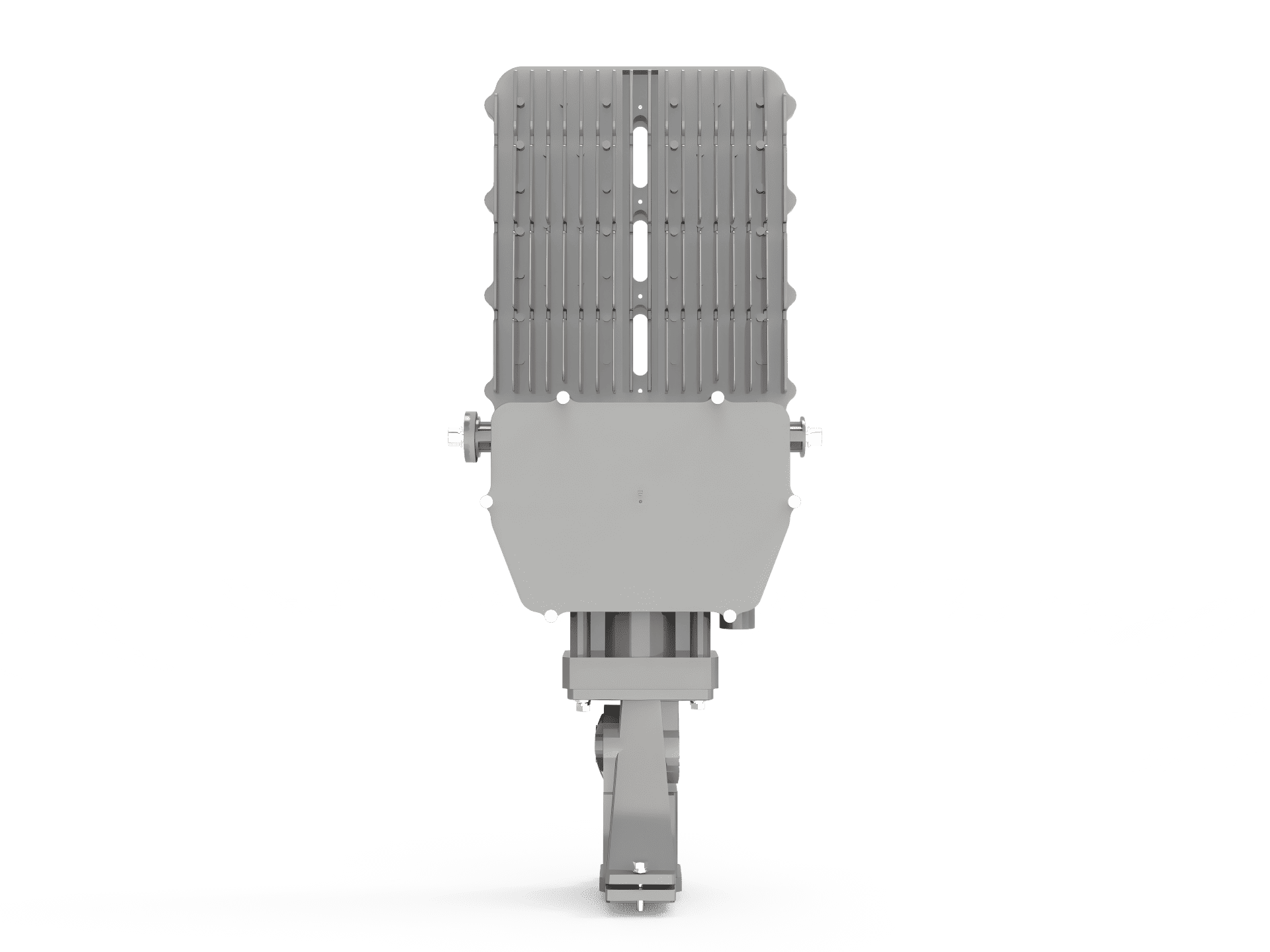

The STA1 Series LED fixture is the ideal choice for marine and hazardous applications. They can be used in locations
where moisture, dirt, dust, corrosion and vibration may be present, or areas where wind, water, snow or high ambient can be
expected.
Contact
Follow
IL STA1
Series:
Explosion-proof Light STA1 Series
The STA1 Series LED fixture is the ideal choice for marine and hazardous applications. They can be used in locations
where moisture, dirt, dust, corrosion and vibration may be present, or areas where wind, water, snow or high ambient can be
expected.
Features
- Suitable for Zone 1&2 (Gas), Zone 21&22 (Dust)
- High luminous efficacy – Up to 120-140 lumens per watt
- 0-10V dimming
- Waterproof and dust-proof, without internal cleaning and maintenance
- Simple structure for easy and quick installation
- Stainless steel fasteners, ADC12 aluminum housing, good corrosion resistance
- Tempered glass, high light transmittance and impact resistance
Technical Specifications
Electrical Specifications
Model
STA1
Rated Power
Max. 120W/Max. 200W/Max. 240W
Input Voltage
AC200-277V
Input Frequency
50/60Hz
Emergency
Emergency only for STA1 with Max. 120W
Optical Specifications
Model
STA1
Lumen Output
14,400-16,800Lm/24,000-28,000Lm/28,800-33,600Lm
Lumens Per Watt
120-140Im/W
CCT
2700K-7000K
CRI
>70
Beam Angle
40°/60°/90°/120°/T3/T5
Dimming
0-10V dimming
Mechanical Specifications
Model
STA1
Housing Material
ADC12 aluminum
Glass
Tempered glass
Surface
Explosion-proof joint surface
Fasteners
Stainless steel
Protection
IP66/IP67 IK07/08 (without wire guard)/IK09 (with wire guard)
Mounting
Pole, Trunnion, Arm, Slip Fitter, Bracket, Stanchion
Application
Environmental
| Model | Rated Power | Ambient Temperature | Temperature Class (Gas/Dust) |
|---|---|---|---|
| STA1 (Normal) |
Max. 240W Max. 200W Max. 120W Max. 120W |
-40°C to +40°C -40°C to +50°C -40°C to +40°C -40°C to +56°C |
T4/80°C T4/90°C T5/80°C T5/90°C |
| STA1 (Emergency) | Max. 120W | 0°C to +40°C | T4/80°C |
Packing Information
Model
STA1
Net Weight (Product)
9.5kg/20.941b
Product Dimensions (LxWxH)
550x329x72mm/21.65x12.95x2.83inch
Quantity/Carton
1pc
Gross Weight
13.2kg/29.10lb
Package Dimensions (LxWxH)
890X400x220mm/ 35.04x15.75x8.66inch
Warranty
5-Year Standard Warranty
Specifications Sheet
- Suitable for Zone 1&2 (Gas), Zone 21&22 (Dust)
- High luminous efficacy – Up to 120-140 lumens per watt
- 0-10V dimming
- Waterproof and dust-proof, without internal cleaning and maintenance
- Simple structure for easy and quick installation
- Stainless steel fasteners, ADC12 aluminum housing, good corrosion resistance
- Tempered glass, high light transmittance and impact resistance
