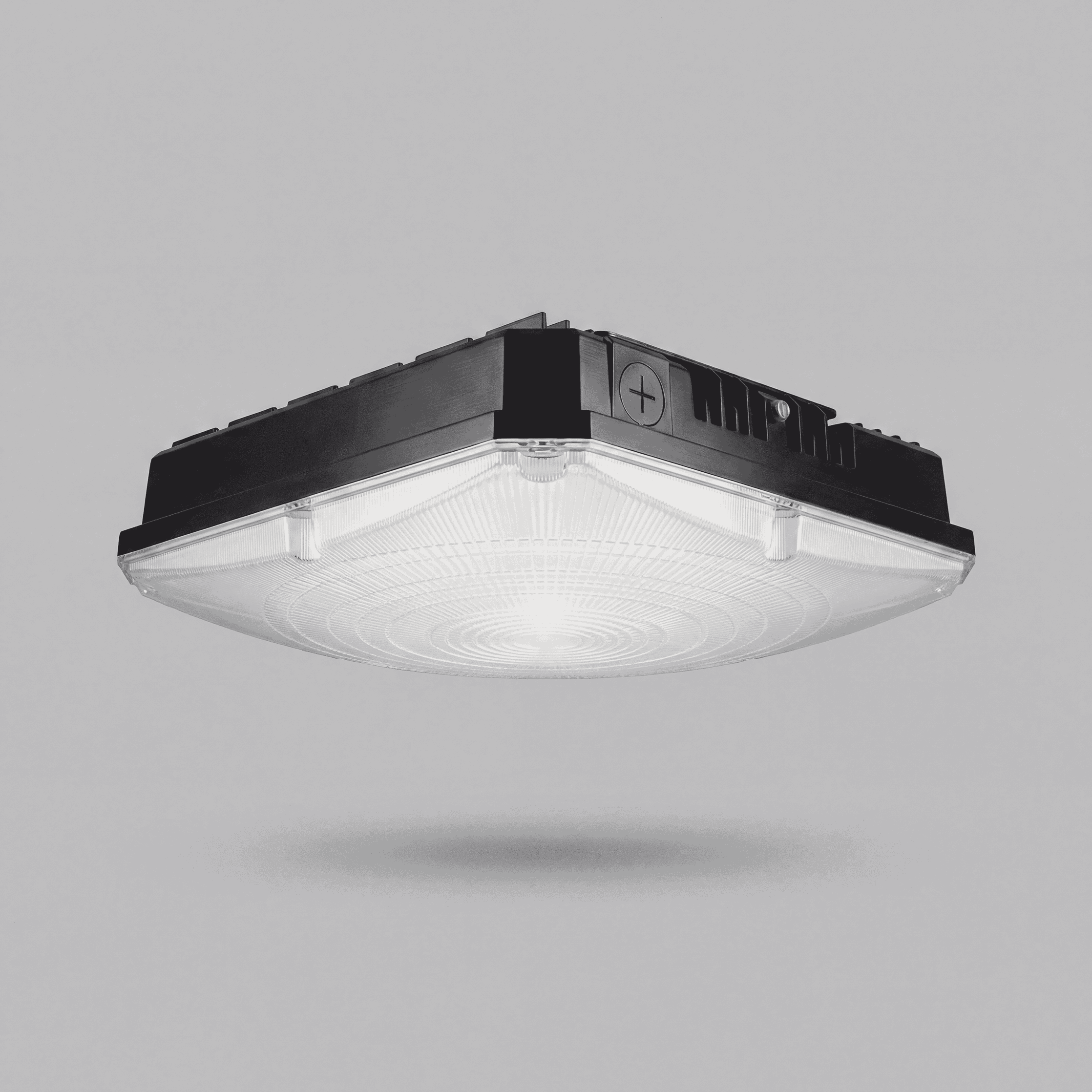

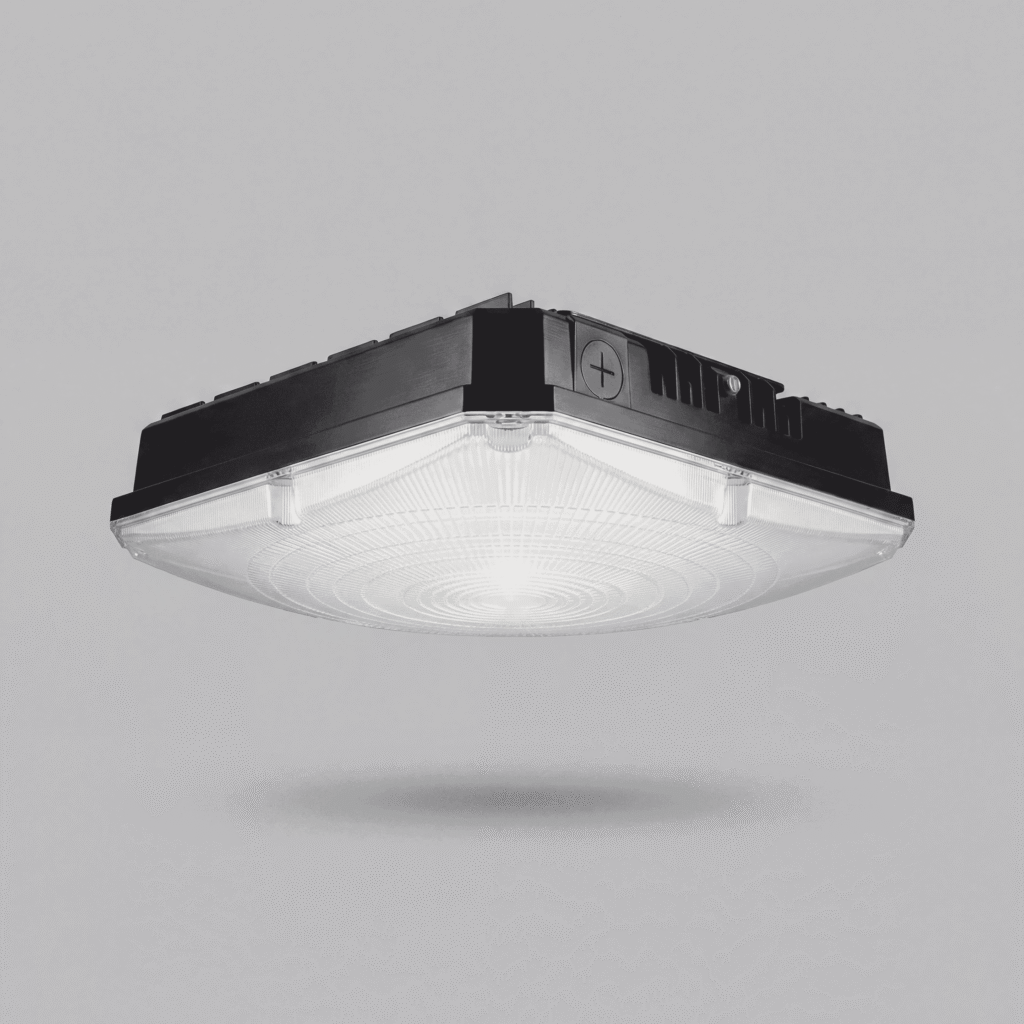

Parking Gas Station Canopy
Series:
OUTDOOR LIGHTING SERIES
Features
- Large light-emitting area and with very uniform light.
- Strong heat dissipation due to enough materials and external airflow fins.
- UV resistant lens and coating.
- Convenient for surface mount.
- 3/4’’ hub size, suitable for pole pendant installation, no need to use an adapter.
- Different specs and wattages for choice, —8.5” (28W, 40W), 10” (28W, 40W, 60W, 70W).
- Microwave motion sensor & Photocell available.
- Watts & CCT selectable.
- AC120-347V & 277-480V available
Technical Specifications
Specifications
| Part No. | Input Voltage | Power | CCT | Lumens | Dimensions | Beam Angle |
|---|---|---|---|---|---|---|
|
TS-GCP0830-28W-C-50K TS-GCP0840-40W-C-50K TS-GCP1030-28W-C-50K TS-GCP1040-40W-C-50K TS-GCP1070-60W-C-50K TS-GCP1070-70W-C-50K |
AC120-277V |
28W 40W 28W 40W 60W 70W |
5000K |
3,360lm 4,800lm 3,360lm 4,800lm 7,200lm 8,400lm |
8.5” 10” |
135° |
Specifications Sheet
- Large light-emitting area and with very uniform light.
- Strong heat dissipation due to enough materials and external airflow fins.
- UV resistant lens and coating.
- Convenient for surface mount.
- 3/4’’ hub size, suitable for pole pendant installation, no need to use an adapter.
- Different specs and wattages for choice, —8.5” (28W, 40W), 10” (28W, 40W, 60W, 70W).
- Microwave motion sensor & Photocell available.
- Watts & CCT selectable.
- AC120-347V & 277-480V available
Dimensions
Specifications
Accessories
Technical Specifications
Part Number
Part Number
TS-GCP0830-28W-C-50K, TS-GCP0840-40W-C-50K, TS-GCP1030-28W-C-50K, TS-GCP1040-40W-C-50K, TS-GCP1070-60W-C-50K, TS-GCP1070-70W-C-50K
Electrical Specs
Input Voltage
AC120-277V
Power
28W, 40W, 28W, 40W, 60W, 70W
Lighting Performance
Lumens
3,360lm, 4,800lm, 3,360lm, 4,800lm, 7,200lm, 8,400lm
Correlated Color Temperature
5000K
Angles
