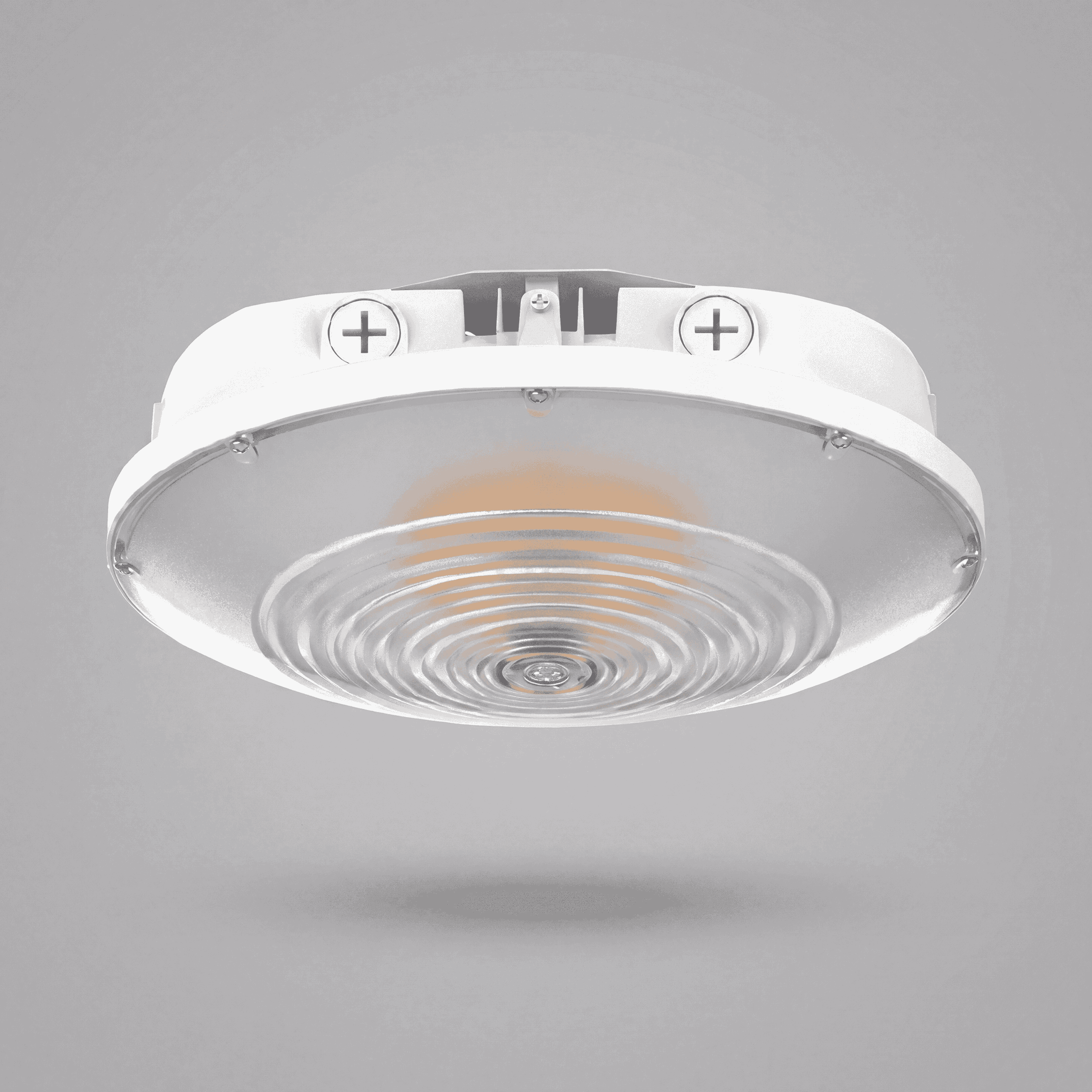

Round LED Canopy/ Garagelight -Stars Series
Series:
OUTDOOR LIGHTING SERIES
Features
- This garage lamp is a special design for application in places like parking garage, car port driveway, underpass, etc.
- Fins design, advective grooves between fins are good for heat dissipation.
- Professional light distribution technique, high light reflectivity reflectors, 150° beam angle available, Light transmission rate of lens is over 90%.
- It complies with UL certification, safe and reliable.
- This light features an up-and-down lighting design, with the upward light accounting for 10% and the option to turn off the upward light independently.
- The light can be installed in three ways: ceiling mount, pendant mount, and large U-bracket mount.
Technical Specifications
Specifications
| Part No | Input Voltage | Power | CCT | Lighting Efficiency | Life span | Beam Angle |
|---|---|---|---|---|---|---|
|
TS-GCP1310-100W-SGT-TCP-(XX) TS-GCP1310-100W-SGT-H-MV-TCP(XX) |
AC120-277V/ AC120-347V |
25/50/75/100W | 30-40-50K | 120lm/W | ≥ 50,000H | 150° |
Specifications Sheet
- This garage lamp is a special design for application in places like parking garage, car port driveway, underpass, etc.
- Fins design, advective grooves between fins are good for heat dissipation.
- Professional light distribution technique, high light reflectivity reflectors, 150° beam angle available, Light transmission rate of lens is over 90%.
- It complies with UL certification, safe and reliable.
- This light features an up-and-down lighting design, with the upward light accounting for 10% and the option to turn off the upward light independently.
- The light can be installed in three ways: ceiling mount, pendant mount, and large U-bracket mount.
Dimensions
Specifications
Accessories
Technical Specifications
Part Number
Part Number
TS-GCP1310-100W-SGT-TCP-(XX), TS-GCP1310-100W-SGT-H-MV-TCP(XX)
Electrical Specs
Input Voltage
AC120-277V/ AC120-347V
Power
25/50/75/100W
Lighting Performance
Correlated Color Temperature
30-40-50K
Life Span
Product Life Span
≥ 50,000H
Angles
