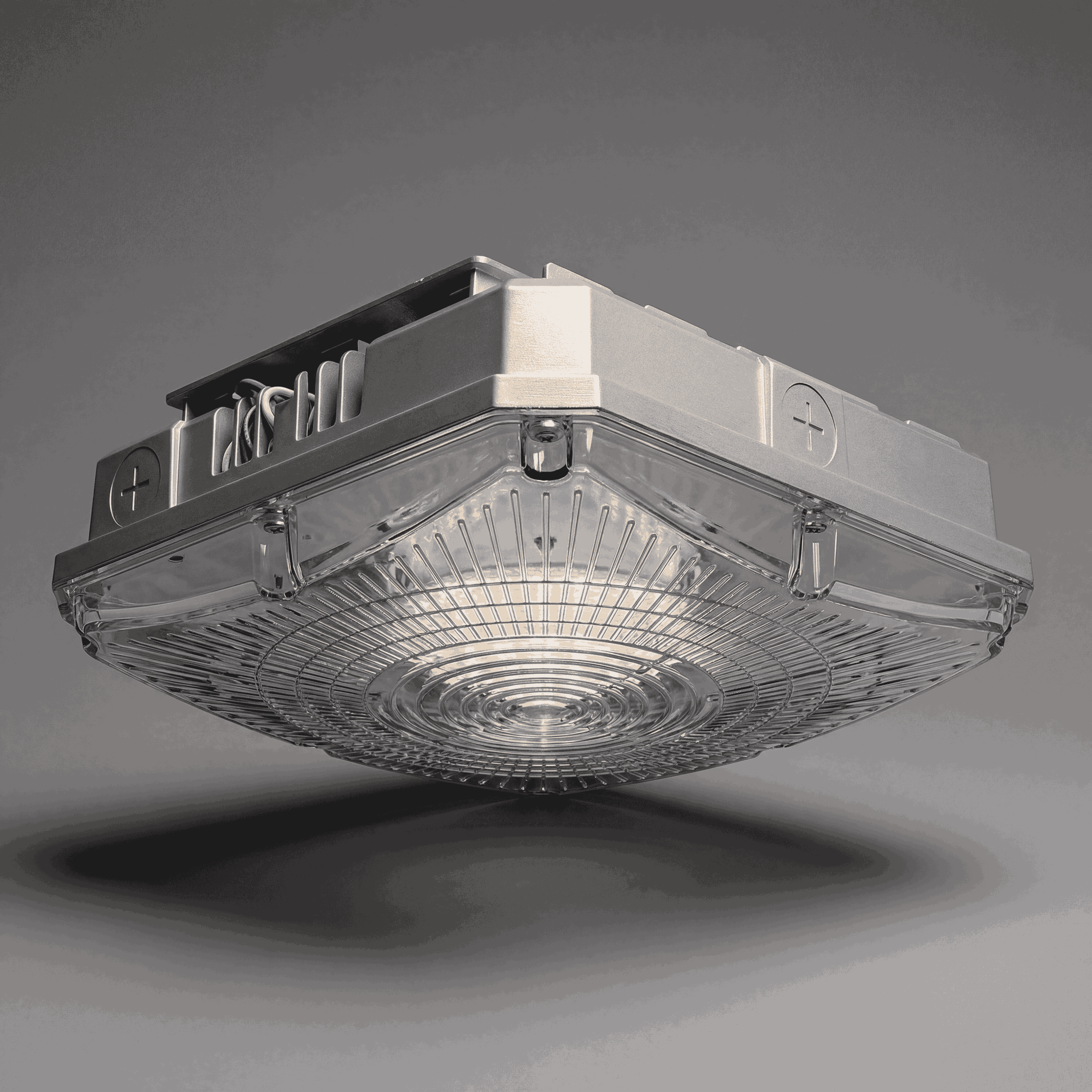

Parking Garage Canopy (Standard)
Series:
OUTDOOR LIGHTING SERIES
Features
- Large light-emitting area and with very uniform light.
- Strong heat dissipation due to enough materials and external airflow fins.
- UV resistant lens and coating. Convenient for surface mount.
- 3/4’’hub size, suitable for pole mount, with no need of using an adapter.
- Different specs and wattages for choice, —8.5”(28W, 40W), 10”(28W, 40W, 60W, 70W), 13.6’’(80W, 100W, 120W).
- Suitable for wet location Waterproof Ip65.
- Microwave motion sensor & Photocell available.
- AC120-277V as standard, AC120-347V & 277-480V available.
- Watts & CCT selectable.
Technical Specifications
Specifications
| Part No. | Input Voltage | Power | CCT | Lumens | Dimensions | Angle |
|---|---|---|---|---|---|---|
|
TS-GCP0830-28W-G-50K TS-GCP0840-40W-G-50K TS-GCP1030-28W-G-50K TS-GCP1040-40W-G-50K TS-GCP1070-60W-G-50K TS-GCP1070-70W-G-50K TS-GCP1040-40W-G-TCP TS-GCP1070-70W-G-TCP TS-GCP1380-80W-G-50K TS-GCP13100-100W-G-50K TS-GCP13120-120W-G-50K TS-GCP13120-120W-G-TCP |
AC120-277V |
28W 40W 28W 40W 60W 70W 40-30-25W 70-60-45W 80W 100W 120W 120-100-80W |
5000K 30-40-50K 5000K 30-40-50K |
3,360lm 4,800lm 3,360lm 4,800lm 7,200lm 8,400lm 4,800-3,600-3,000lm 8,400-7,200-5,400lm 9,600lm 12,000lm 14,400lm 14,400-1,2000-9,600lm |
8.5” 10” 13.6” |
150° 162° |
Specifications Sheet
- Large light-emitting area and with very uniform light.
- Strong heat dissipation due to enough materials and external airflow fins.
- UV resistant lens and coating. Convenient for surface mount.
- 3/4’’hub size, suitable for pole mount, with no need of using an adapter.
- Different specs and wattages for choice, —8.5”(28W, 40W), 10”(28W, 40W, 60W, 70W), 13.6’’(80W, 100W, 120W).
- Suitable for wet location Waterproof Ip65.
- Microwave motion sensor & Photocell available.
- AC120-277V as standard, AC120-347V & 277-480V available.
- Watts & CCT selectable.
Dimensions
Specifications
Accessories
Technical Specifications
Part Number
Part Number
TS-GCP0830-28W-G-50K, TS-GCP0840-40W-G-50K, TS-GCP1030-28W-G-50K, TS-GCP1040-40W-G-50K, TS-GCP1070-60W-G-50K, TS-GCP1070-70W-G-50K, TS-GCP1040-40W-G-TCP, TS-GCP1070-70W-G-TCP, TS-GCP1380-80W-G-50K, TS-GCP13100-100W-G-50K, TS-GCP13120-120W-G-50K, TS-GCP13120-120W-G-TCP
Electrical Specs
Input Voltage
AC120-277V
Power
28W, 40W, 28W, 40W, 60W, 70W, 40-30-25W, 70-60-45W, 80W, 100W, 120W, 120-100-80W
Lighting Performance
Lumens
3,360lm, 4,800lm, 3,360lm, 4,800lm, 7,200lm, 8,400lm, 4,800-3,600-3,000lm, 8,400-7,200-5,400lm, 9,600lm, 12,000lm, 14,400lm, 14,400-1,2000-9,600lm
Correlated Color Temperature
5000K, 30-40-50K
Angles
